Activated Carbon Filter F-C6R from China Manufacturer

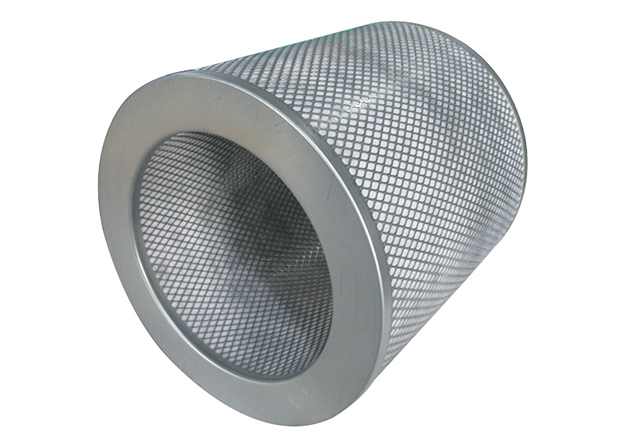

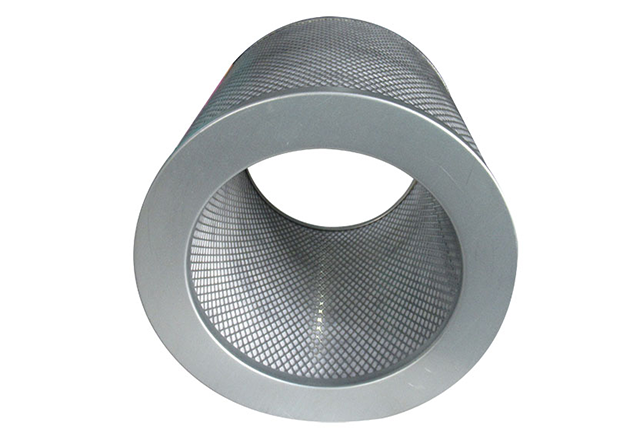

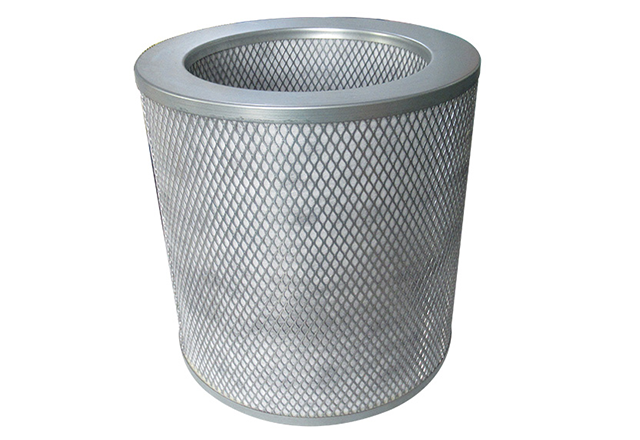

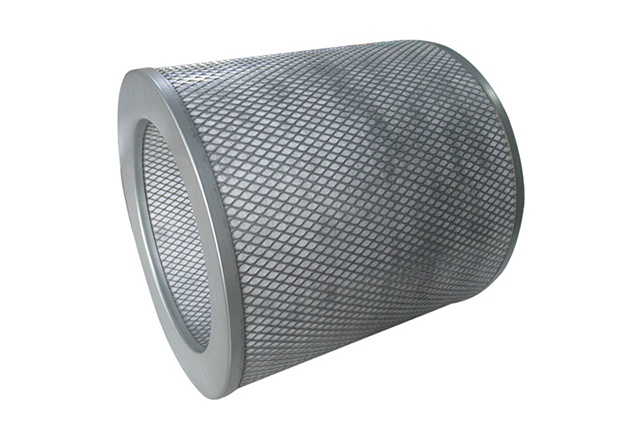

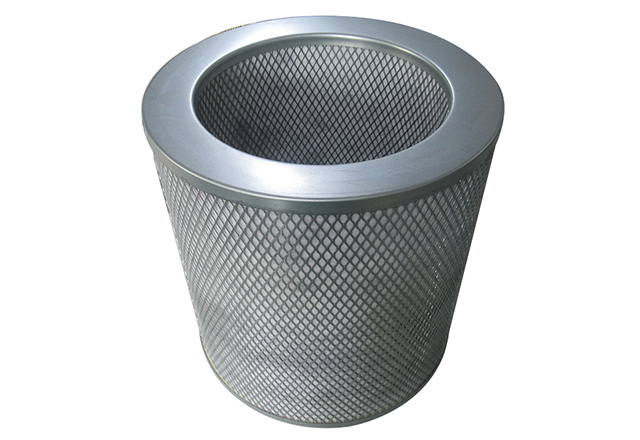

Activated Carbon Filter F-C6R

Filter material:

coconut shell activated carbon

Filtration accuracy:

From 1, 3, 6, 12, 25...μm

Product Description

The activated carbon filter has a good adsorption, can effectively remove residual chlorine, odor, color and organic matter.

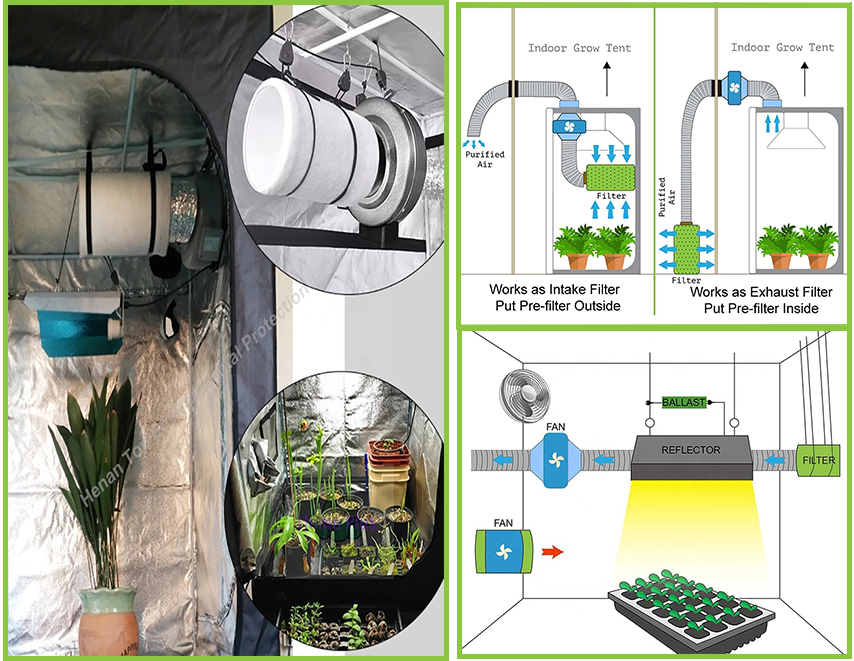

Designed for commercial or industrial air conditioning and central ventilation system to filter odor and harmful gases in the air
A variety of activated carbon materials can be provided according to actual needs, such as volatile compounds, acid, alkaline gas, formaldehyde, mercury vapor, radioactive gas

Technical Parameters

	Product Description
Product Model	Load Weight(Kg)	Airflow(m/h)	Connection Diameter(mm)	Outer Diameter (mm)	Length(mm)
220201	1.3	200	100	180	150
220102	2.6	350	100	180	300
220103	1.6	225	125	205	150
220104	3.1	430	125	205	300
220105	4.1	470	150	240	300
220106	8.3	900	150	240	600
220107	13.8	1260	150	240	1000
220108	5.2	660	200	290	300
220109	10.4	1125	200	290	600
220110	17.3	1600	200	290	1000
220211	12.5	1320	250	340	600
220112	20.8	1980	250	340	1000
220113	15.3	2440	315	405	600
220114	25.4	3280	315	405	1000
220115	33.5	4320	350	440	1200

Advantages

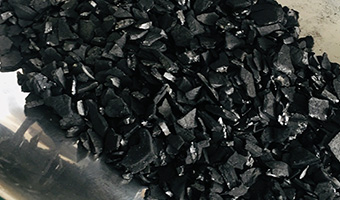

Granular activated carbon with high iodine value is treated with a chemical formulation.

Performance: Strong adsorption capacity, high filtration efficiency, good performance.

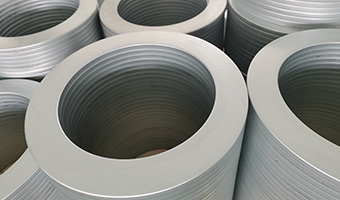

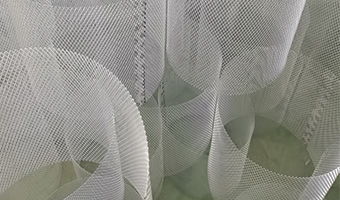

The adsorption medium can be replaced, and the metal shell can be reused

Easy installation and maintenance, low operating cost.
