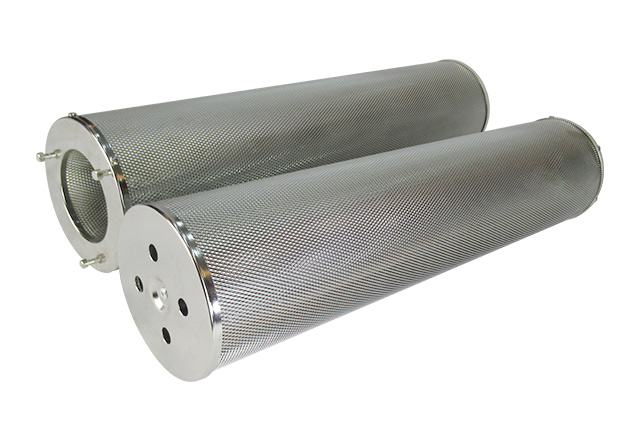

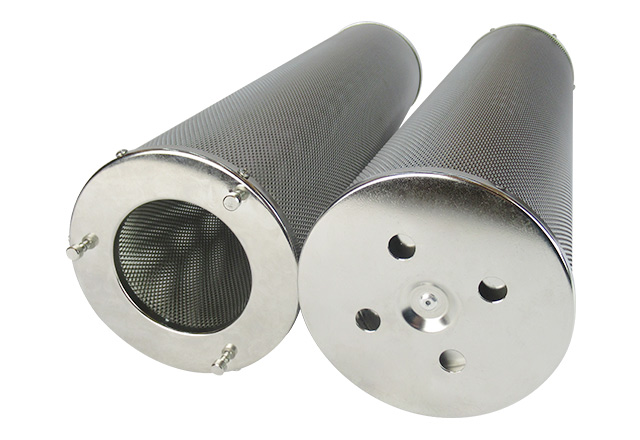

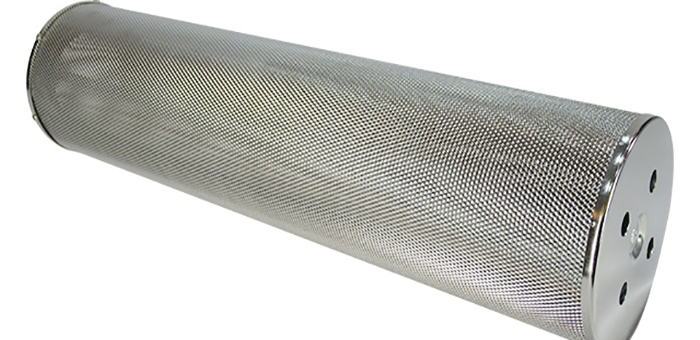

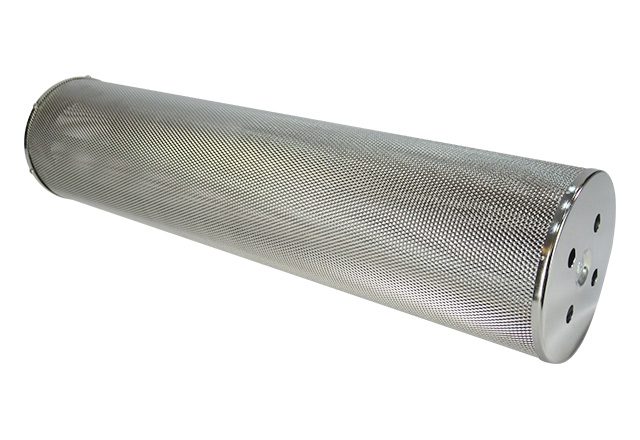

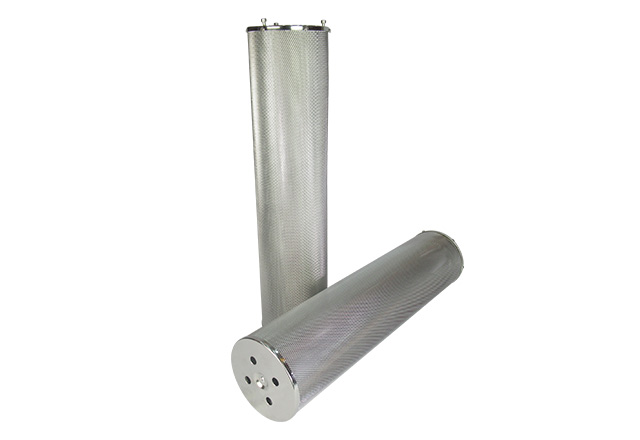

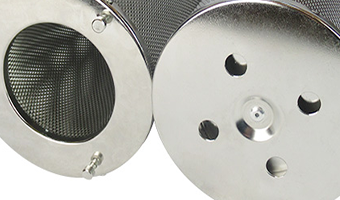

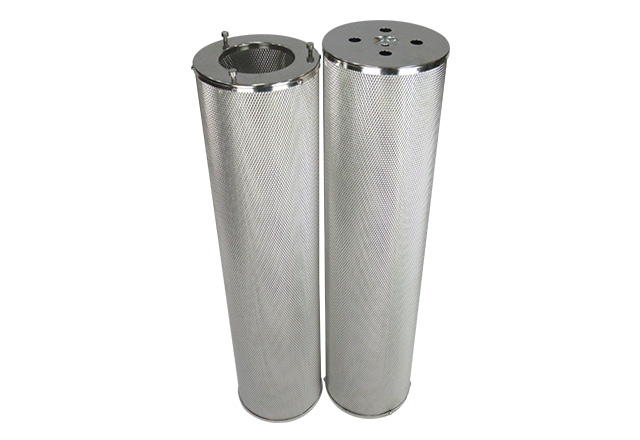

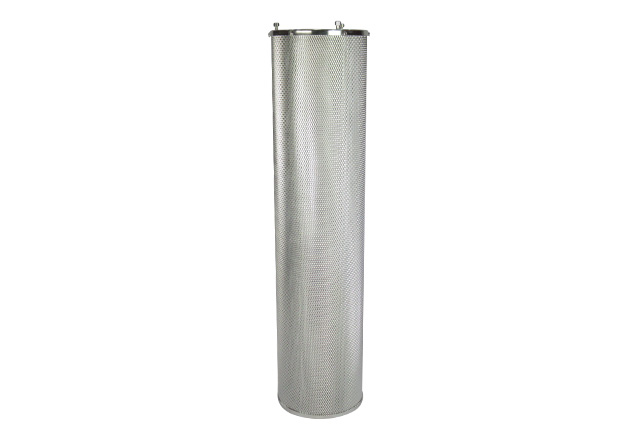

Carbon Air Filter

Size

6inch 8inch 10inch 12inch 14inch

Load Weight

1.3kg ~ 33.5kg

Alrflow

200m/h ~ 4320m/h

Product Description

Activated carbon filter element is made of high-quality shell husk charcoal and coal-based activated carbon, supplemented with edible-grade adhesives, and processed by high-tech technology using a special process. It integrates adsorption, filtration, interception, and catalysis. Effectively remove organic matter, residual chlorine and other radioactive substances in water, and have the effect of decoloring and removing odor. It is an ideal new generation product in the liquid and air purification industry.

Technical Parameters

	Product Description
Product Model	Load Weight(Kg)	Airflow(m/h)	Connection Diameter(mm)	Outer Diameter (mm)	Length(mm)
220201	1.3	200	100	180	150
220102	2.6	350	100	180	300
220103	1.6	225	125	205	150
220104	3.1	430	125	205	300
220105	4.1	470	150	240	300
220106	8.3	900	150	240	600
220107	13.8	1260	150	240	1000
220108	5.2	660	200	290	300
220109	10.4	1125	200	290	600
220110	17.3	1600	200	290	1000
220211	12.5	1320	250	340	600
220112	20.8	1980	250	340	1000
220113	15.3	2440	315	405	600
220114	25.4	3280	315	405	1000
220115	33.5	4320	350	440	1200

Advantages

Granular activated carbon with high iodine value is treated with a chemical formulation.

Performance: Strong adsorption capacity, high filtration efficiency, good performance.

The adsorption medium can be replaced, and the metal shell can be reused

Easy installation and maintenance, low operating cost.

Show Details

Application
