High-temperature-resistant Deep pleated HEPA filter with aluminum foil separator from China Manufacturer

High-temperature-resistant H14 filter with aluminum spacers

Frame:

Card paper, galvanized sheet, aluminium, medium density fiberboard, stainless steel etc.

Filter media:

Import filter paper, fiberglass, activated carbon composite material, Ultrafine polypropylene material, etc.

Sealant:

Polyurethane

Product Description

Traditional separator filters are the commonly-used filters in purifying engineering over half of the century. Although new filters keep on coming into the market, these filters are still not replaceable for many projects due to their characteristics such as cheap, temperature-resistant and shock-resistant.
Deep Pleated HEPA filter media usually made of superfine fiber glass, which separated with paper or aluminum foil, frame can be heat resistant and made of wood, aluminum alloy, steel or stainless steel.It is mainly used for hospital, electronics, food, precision machinery, semiconductor production etc because of heat resistance.A big plus for aluminum spacers: they can offer conductivity against electrostatics and thus may contribute to the safety in ex protected applications.

Features

Name:High-temperature-resistant filter
Efficiency:H13-H14( 0.3micron)
Media:Fiberglass
Frame:Stainless steel
Separators:Aluminum foil,card papaer
Temperature:-20℃-90℃
Humidity: with aluminum seaprators ≤99%
with card paper sraprators ≤85%
Application: High-tgemperature-resistant purification equipment and process equipment,such as temperature air supply system in pharmaceutical.medical,food industry and special industries.

Dimensions（mm）	Filter area（㎡）	Rated Air Flow (m3/h)	Recommended air volume(m3/h)	Initial pressure（Pa）
610x610x150	8.4	850	500-1000	230
305x610x150	234.1	425	250-500	230
915x610x150	12.6	1275	750-1400	230
1219x610x150	16.8	1700	1000-1900	230
610x610x292	17	1700	1000-1900	240
305x610x292	8.5	850	500-900	240
915x610x292	25.5	2550	1500-2800	235
1219x610x292	34	3400	2000-3800	235
610x610x292/3	24.9	1700	1500-3000	190
305x610x292/3	12.5	850	750-1500	195
320x320x220	5.3	425	300-425	235
484x484x220	11.8	1000	600-1000	230
726x848x220	17.7	1500	900-1500	225
968x484x220	23.6	2000	1200-2000	225
630x630x220	20.3	1500	1000-1500	220
315x630x220	10.2	750	500-750	220
945x630x220	30.6	2250	1500-2250	215
1260x630x220	40.8	3000	2000-3000	215

If you can't find the filter you want, we can also customize it according to your requirements

Advantages

Good filtration performance, 2-200um filter particle size can play a uniform surface filtration performance.

Good corrosion resistance, heat resistance, pressure resistance and wear resistance;

Malle filter hole uniform, accurate filtration accuracy;

Malle filter is suitable for all kinds of hydraulic environment;Can be used after cleaning, no replacement.

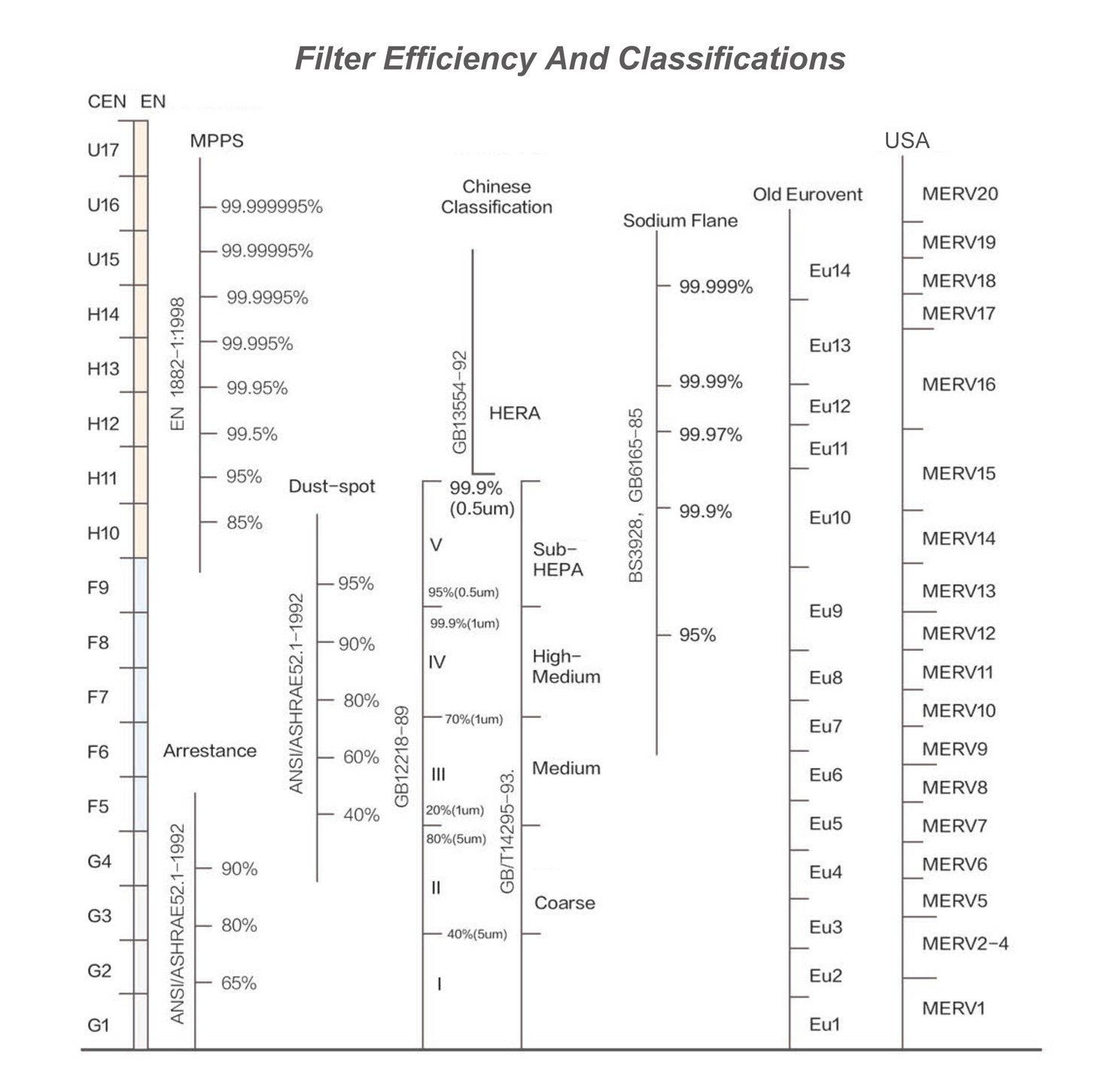

Efficiency comparison table
