NGGC336
Coalescence filter
Coalescence-separation filter
Natural gas pipeline filter element
Coalescing gas filter
NGGC336
Coalescence filter
Coalescence-separation filter
Natural gas pipeline filter element
Coalescing gas filter

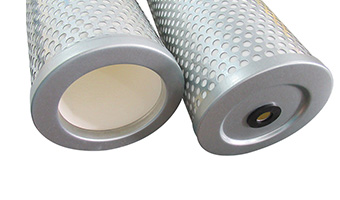

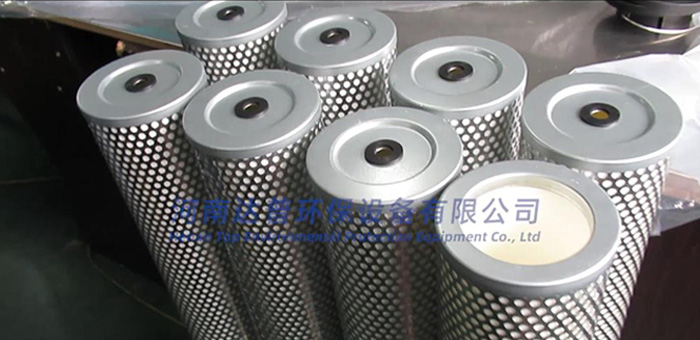

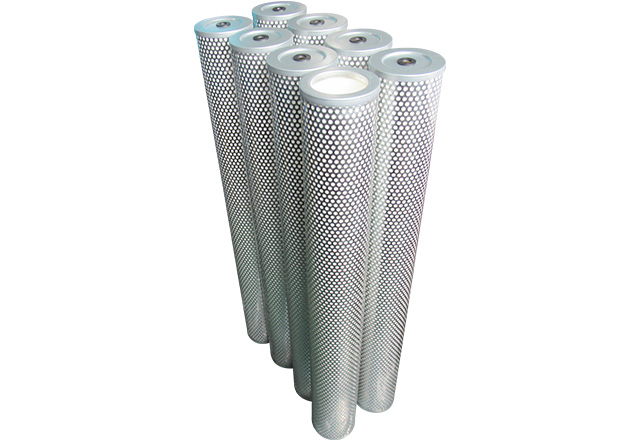

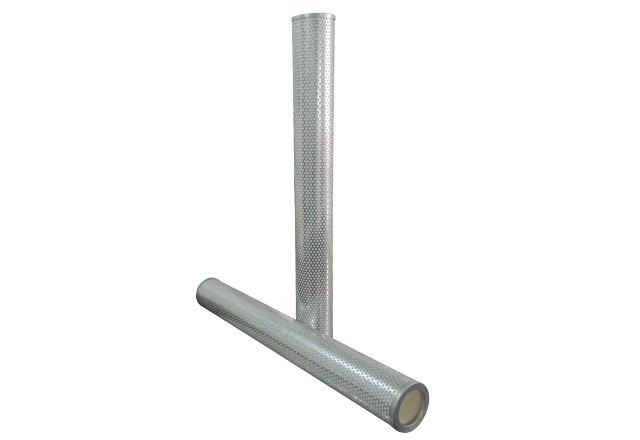

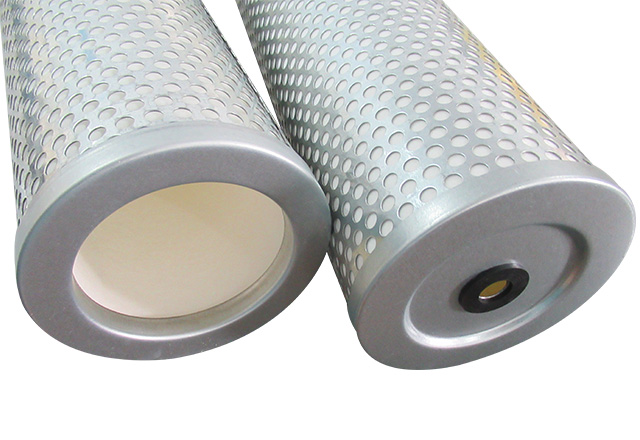

Natural gas filter NGGC336

Media material:
Fiber glass, oil absorbent cotton, filter paper, and multiple composite materials.
Accuracy:
0.1 micron, 0.3 micron, 0.5 micron, 1, 5 micron, 10 micron
End caps:
Flat or customized
Share:
Product Description
The coalescence and separation process is divided into two stages. When the liquid/liquid mixture enters the coalescing filter element, small continuous droplets continue to combine, coalesce and settle. The contaminant-free liquid and the dispersed large droplets flow to the separation filter element, which is made of hydrophobic material. Separation of fluid and particles, continuous improvement of fluid quality. It saves a lot of fluid processing costs and prolongs the service life of production equipment. The separation cost of fluid and solid is low, and the fluid is treated in one-time collectively, saving production cost. Increase productivity. The use of the pre-filter unit can effectively extend the service life of the coalescence and separation unit.
The coalescence separation filter element is used in the oil-water separation system, mainly separating oil-water mixture, suspension solution, emulsion solution, etc. The use process of the coalescence separation filter element in the system is divided into: solid-liquid separation ---demulsification --- coalescence ---separation---adsorption.
Technical Parameters
Media material Fiber glass, oil absorbent cotton, filter paper, and multiple composite materials.
End caps material Stainless steel,carbon steel
Accuracy 0.1 micron, 0.3 micron, 0.5 micron, 1, 5 micron, 10 micron(customized)
Sealing material Buna-N
Size customized
