Factory direct suply Oil mist separation filter element CSPHER-36BXH

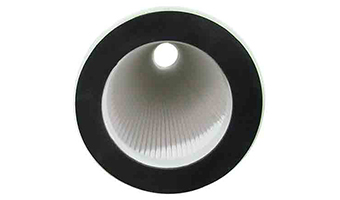

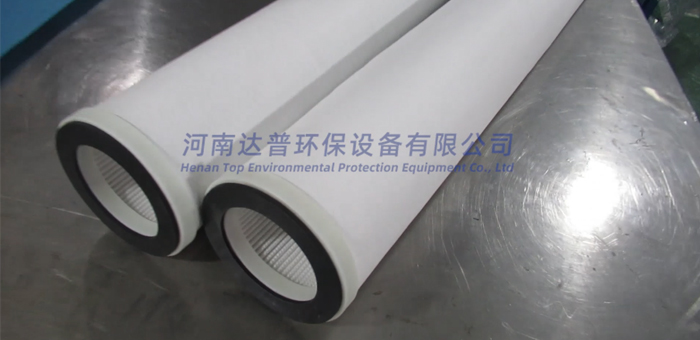

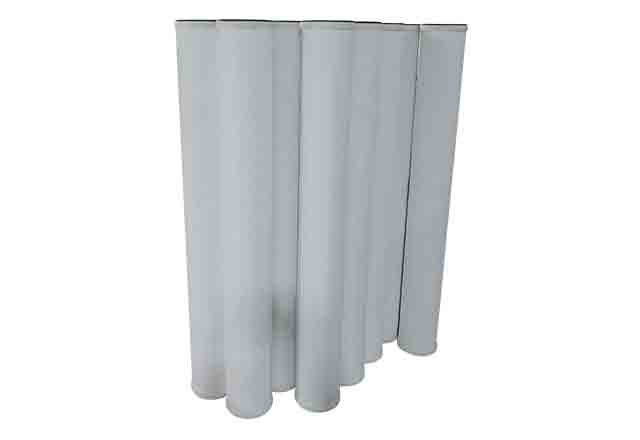

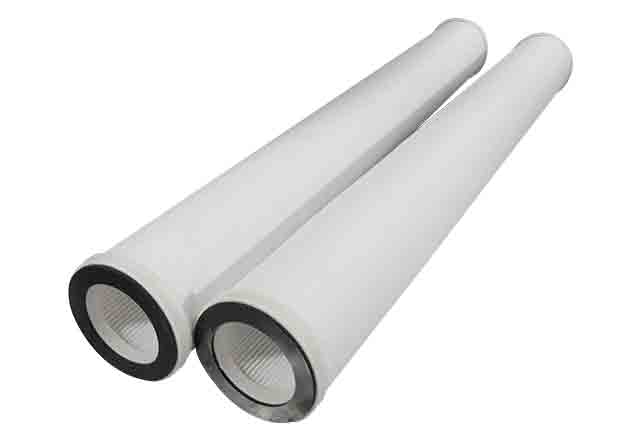

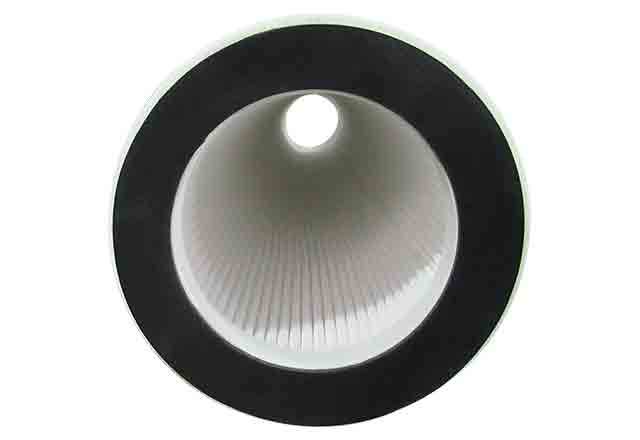

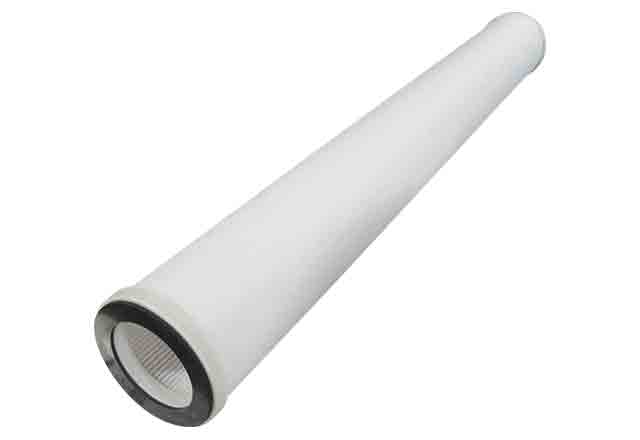

Oil mist separation filter element CSPHER-36BXH

Product Description

The oil mist separation filter element is a professional equipment installed on CNC machining centers, grinders, lathes, and various machine tools to solve the oil mist, water mist and dust existing in mechanical processing.

Feature.

1. High filtration efficiency. 2. Long service life. 3. High temperature resistance. 4. Good oil removal and purification effect. 5. Strong water absorption. 6. Low pressure difference. 7. Easy to operate.

Technical Parameters

1. It has good resistance to high temperature and pressure and chemical corrosion resistance.
2. It has excellent air permeability, large dirt holding capacity, high strength, good sealing, long life, and can be cleaned and used repeatedly.
3. Working temperature: -60-500℃.
4. The pressure difference that the filter element bears: 2MPa.

Product Name	Oil mist separation filter element CSPHER-36BXH
End cover	Nylon

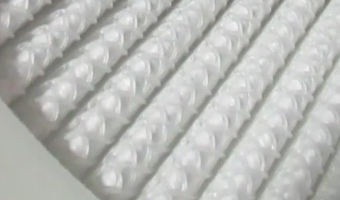

Inner filter layer	Composite
Middle frame	SS316

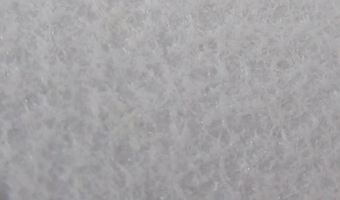

Outer filter layer	Needled felt
Sealing ring	Fluorelastomer

Advantages

Good filtration performance, 2-200um filter particle size can play a uniform surface filtration performance.

Good corrosion resistance, heat resistance, pressure resistance and wear resistance;

Filter hole uniform, accurate filtration accuracy;

Filter is suitable for all kinds of hydraulic environment;Can be used after cleaning, no replacement.

Production process

Check manufacturing drawing---Prepare raw material --- Pleated wave ---Opposite joint---Assembly---Inspection---Test --Packing---Transport and shipping
