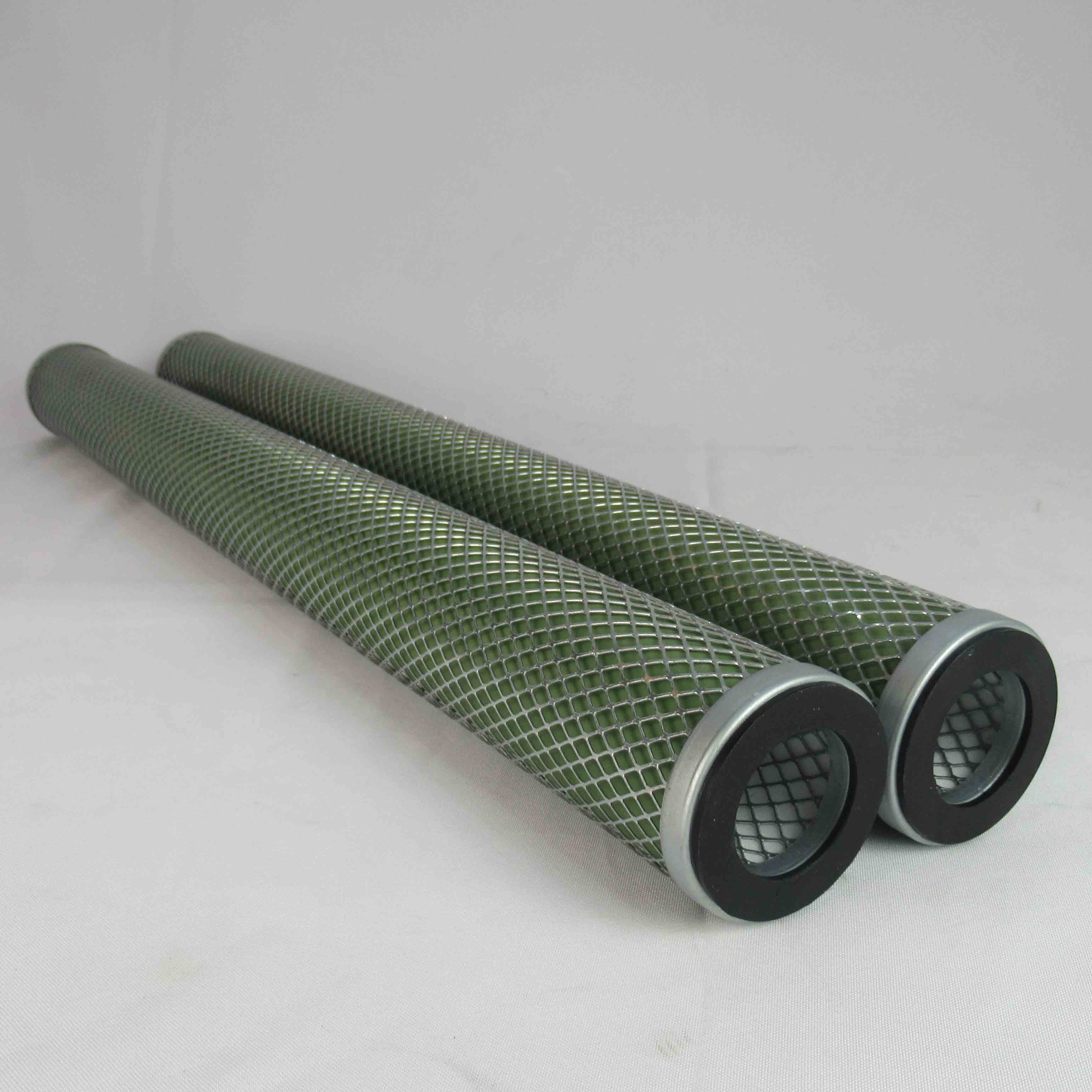

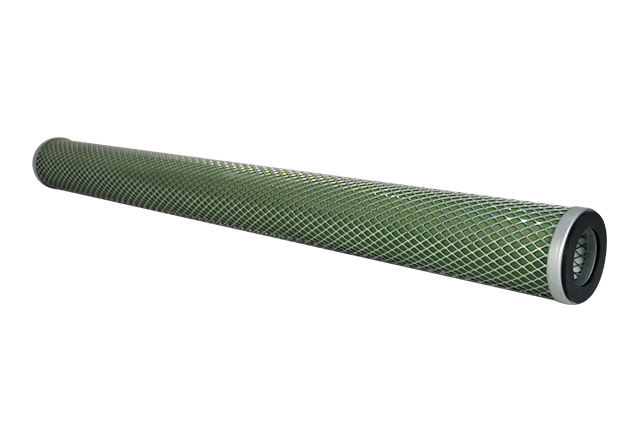

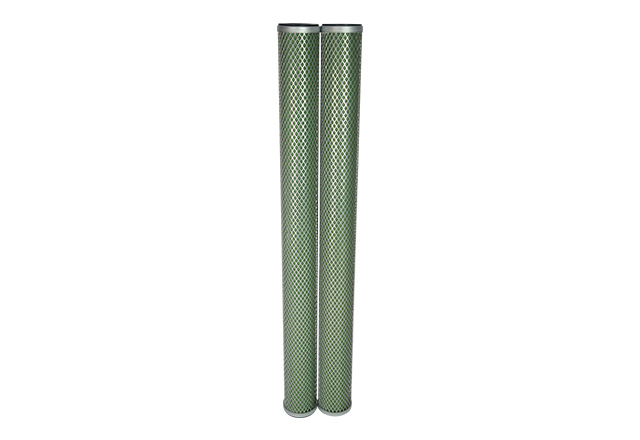

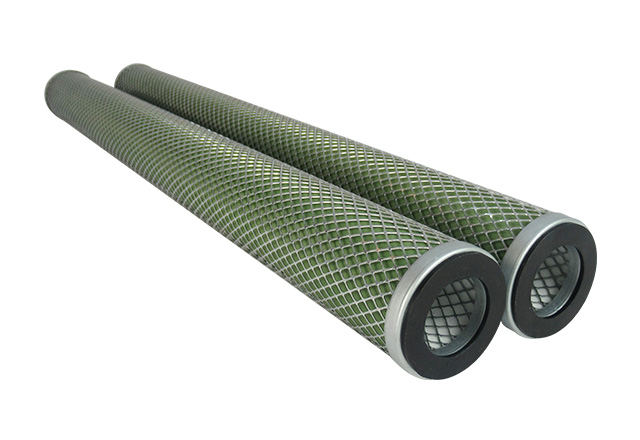

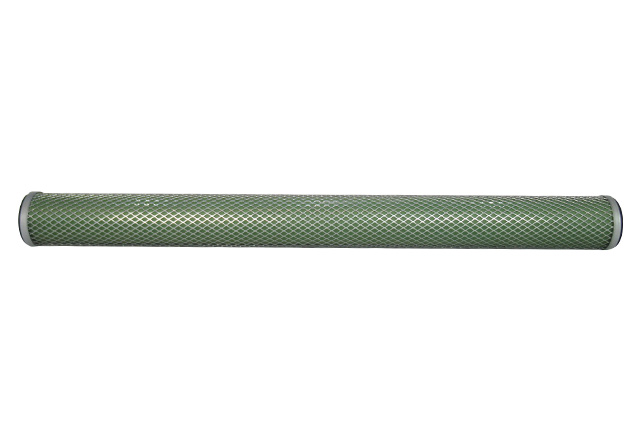

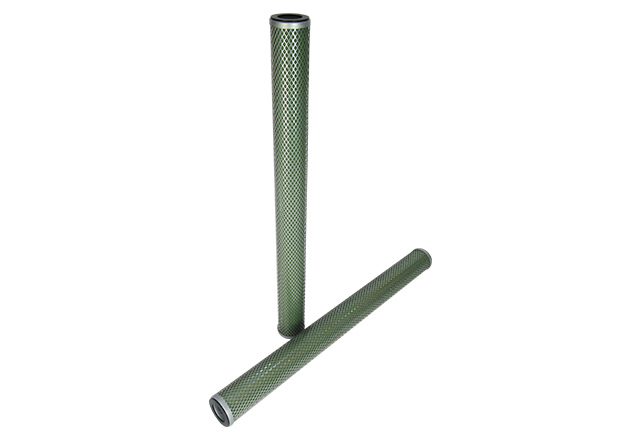

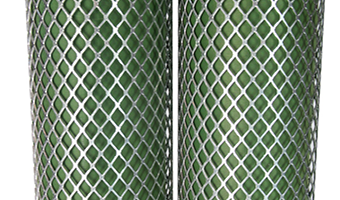

Customized Separation Filter Remove Oil 45*75*790 from China Manufacturer

Customized Separation Filter Remove Oil 45*75*790

Media material:

Teflon

Accuracy:

0.1 micron, 0.3 micron, 0.5 micron, 1, 5 micron, 10 micron

End caps:

ss304

Product Description

The oil-water separation filter element is mainly designed for oil-water-liquid separation. It contains two filter elements, namely: poly filter element and separation filter element.
For example, in the oil dewatering system, after the oil flows into the coalescing separator, it first flows through the coalescing filter element, which filters out solid impurities, and coalesces extremely small water droplets into larger water droplets.
Most of the coalesced water droplets can be separated and removed from the oil by their own weight and settled in the water collection tank.
The oil then flows through the separation filter element. Because the separation filter element has good lipophilicity and hydrophobicity, the water is further separated. Finally, the clean, water-free oil flows out of the coalescing separator.

Technical Parameters

Media material:Teflon
Accuracy: 0.1 micron, 0.3 micron, 0.5 micron, 1, 5 micron, 10 micron
End caps:Flat or customized
End caps material:Stainless steel，carbon steel, PU, etc.
Sealing material:Buna-N
Exchange differential pressure:1.1bar(15psi)
pressure:5.2Bar(75psi)
Temperature: 115°C
Flow direction:From outside to inside
OD Size: 3.5inch, 4.5inch,6inch or customized
Length: 16inch, 18inch, 20inch, 32inch, 36inch,40inch, 72inch or customized

Applications

Aviation fuel, gasoline, kerosene, diesel

Liquefied petroleum gas, stone tar, benzene, toluene, cumene, polypropylene, cumene, etc

Turbine oils and other low viscosity hydraulic fluids, lubricating oils

Cycloethane, isopropanol, cycloethanol, cycloacetophenone and other hydrocarbon compounds
