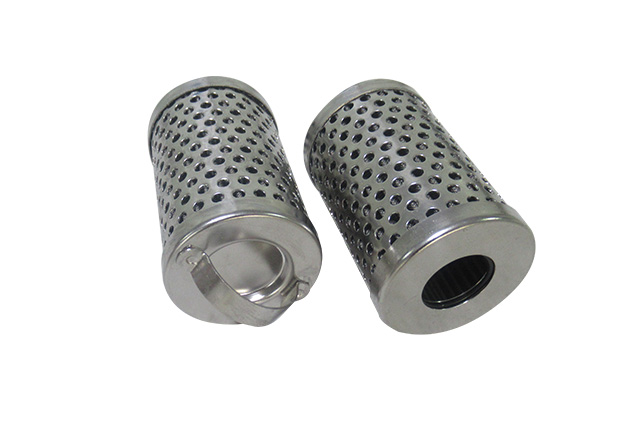

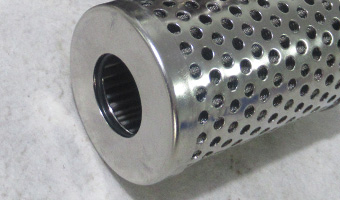

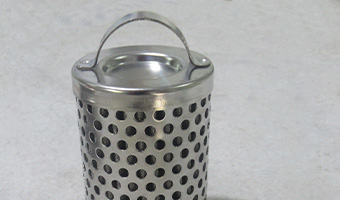

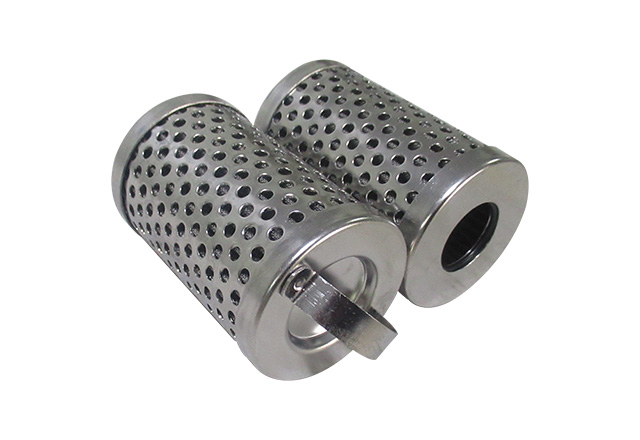

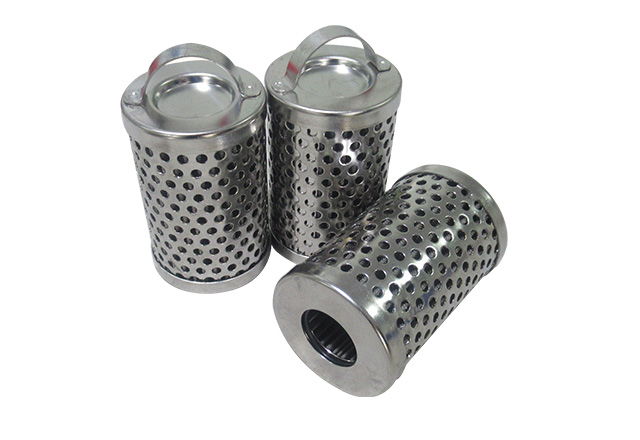

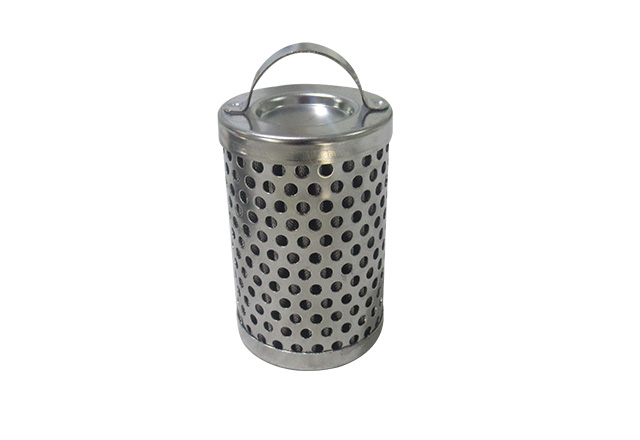

Factory customized 25 micron Stainless Steel Oil Filter Element

25micron Stainless Steel Oil Filter Element

Product Description

The stainless steel filter element uses a stainless steel woven mesh as the main filter medium, the sealing surfaces of the filter element are joined by argon arc welding. The filter layer adopts a multi-fold process to form a complete filter element without leakage or media falling off.

Technical Parameters

1. It has good resistance to high temperature and pressure and chemical corrosion resistance.
2. It has excellent air permeability, large dirt holding capacity, high strength, good sealing, long life, and can be cleaned and used repeatedly.
3. Working temperature: -60-500℃.
4. The pressure difference that the filter element bears: 2MPa.

End cover material	stainless steel 316
Frame	316 impacting plate
Filtering accuracy	25 micron

Advantages

Good filtration performance, 2-200um filter particle size can play a uniform surface filtration performance.

Good corrosion resistance, heat resistance, pressure resistance and wear resistance;

Filter hole uniform, accurate filtration accuracy;

Filter is suitable for all kinds of hydraulic environment;Can be used after cleaning, no replacement.

Production process

Check manufacturing drawing---Prepare raw material --- Pleated wave ---Opposite joint---Assembly---Inspection---Test --Packing---Transport and shipping
