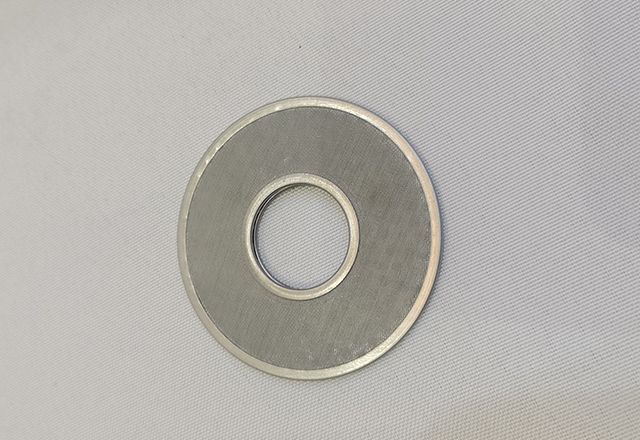

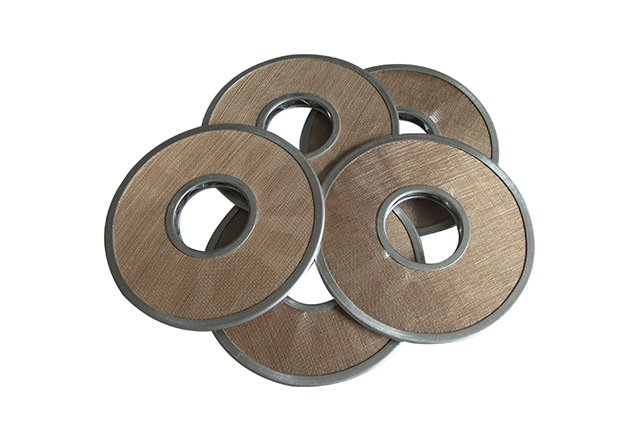

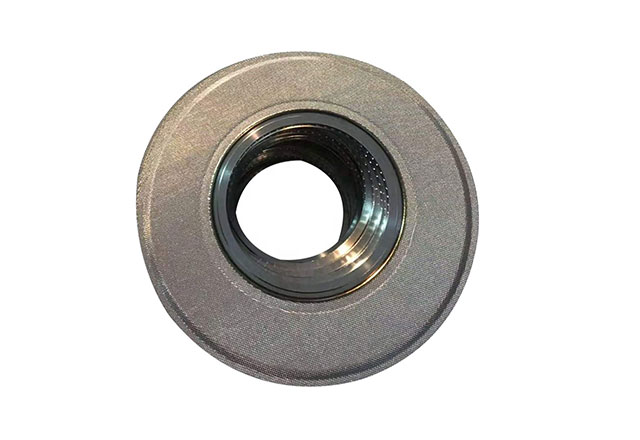

Stainless Steel Leaf Disc Filter
Disc Filter
Filter Disc

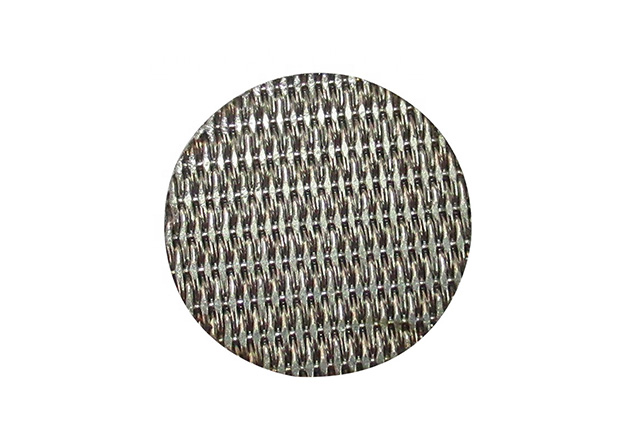

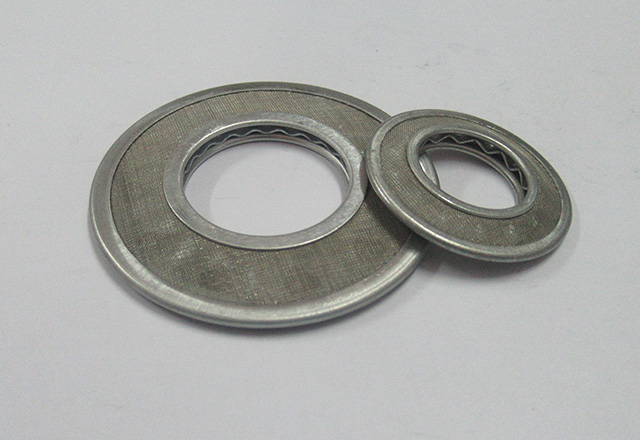

Porous Filter disk
Stainless Steel Leaf Disc Filter
Disc Filter
Filter Disc
Porous Filter disk

Stainless Steel Leaf Disc Filter

Share:
Product Description
The disc type filter applied to high viscosity melt filtration device, it is easy to remove solid impurities and condensate,and the material is stainless steel sintering felt and stainless steel sintering network, the disc filter can be reused and cleaned for many times. And it can used in the filteration of two-way stretch polyester film, film, tape and other industries filtration.
Performance: acid resistance, alkali resistance, temperature resistance, wear resistance, etc
Feature:direct filtration, simple process, good air permeability, uniform and stable precision, no leakage, good regeneration  performance, fast regeneration, easy installation, high efficiency, long service life.
Application: mainly used in air conditioning, purifier, range hood, air filter, dehumidifier, and dust collector, suitable for a variety of different filtration, dust removal and separation requirements, suitable for petroleum, chemical, mineral, food, pharmaceutical and other industries of filtration.
Technical Parameters
Specification Outer Dia (mm) Inner Dia (mm) Thickness (mm) Filtration Area (mm)
CD-4.4 111.1 38.1 5.6-12 0.014
CD-7A 177.8 4.6 0.041
CD-7B 177.8 64.5 0.037
CD-7C 177.8 85.2 0.029
CD-8.8 222.3 63.5 0.063
CD-10 250.0 85.2 0.076
CD-12A 304.8 85.2 0.120
CD-12B 304.8 63.5 0.13
CD-13.2 335.0 72.5 0.155
CD8.8B 222.3 85.2 0.059

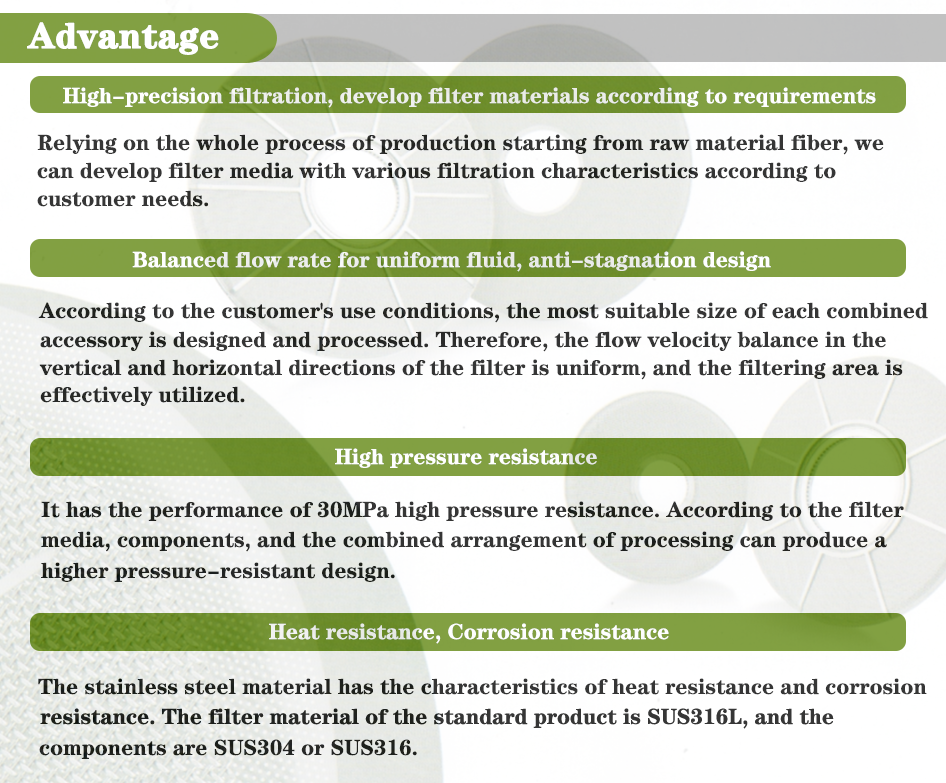

Advantages
01
Good filtration performance,1-300um filter particle size can play a uniform surface filtration performance.
02
Good corrosion resistance, heat resistance, pressure resistance and wear resistance;
03
Filter hole uniform, accurate filtration accuracy;
04
Filter is suitable for all kinds of hydraulic environment;Can be used after cleaning, no replacement.

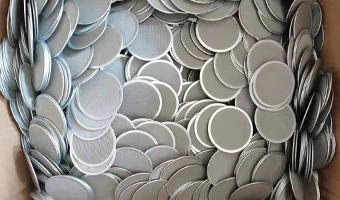

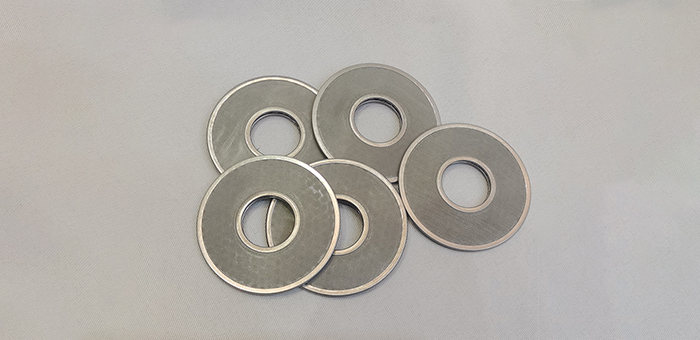

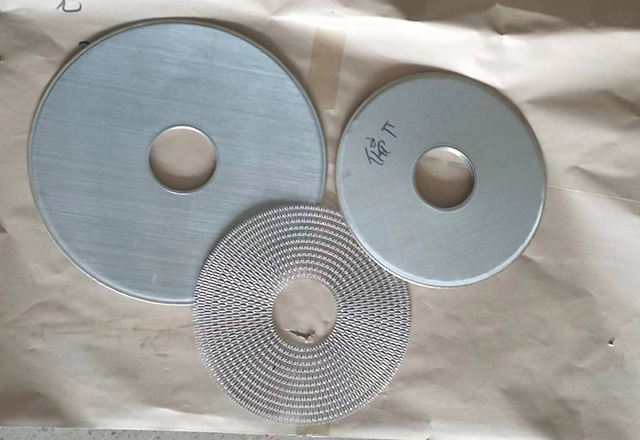

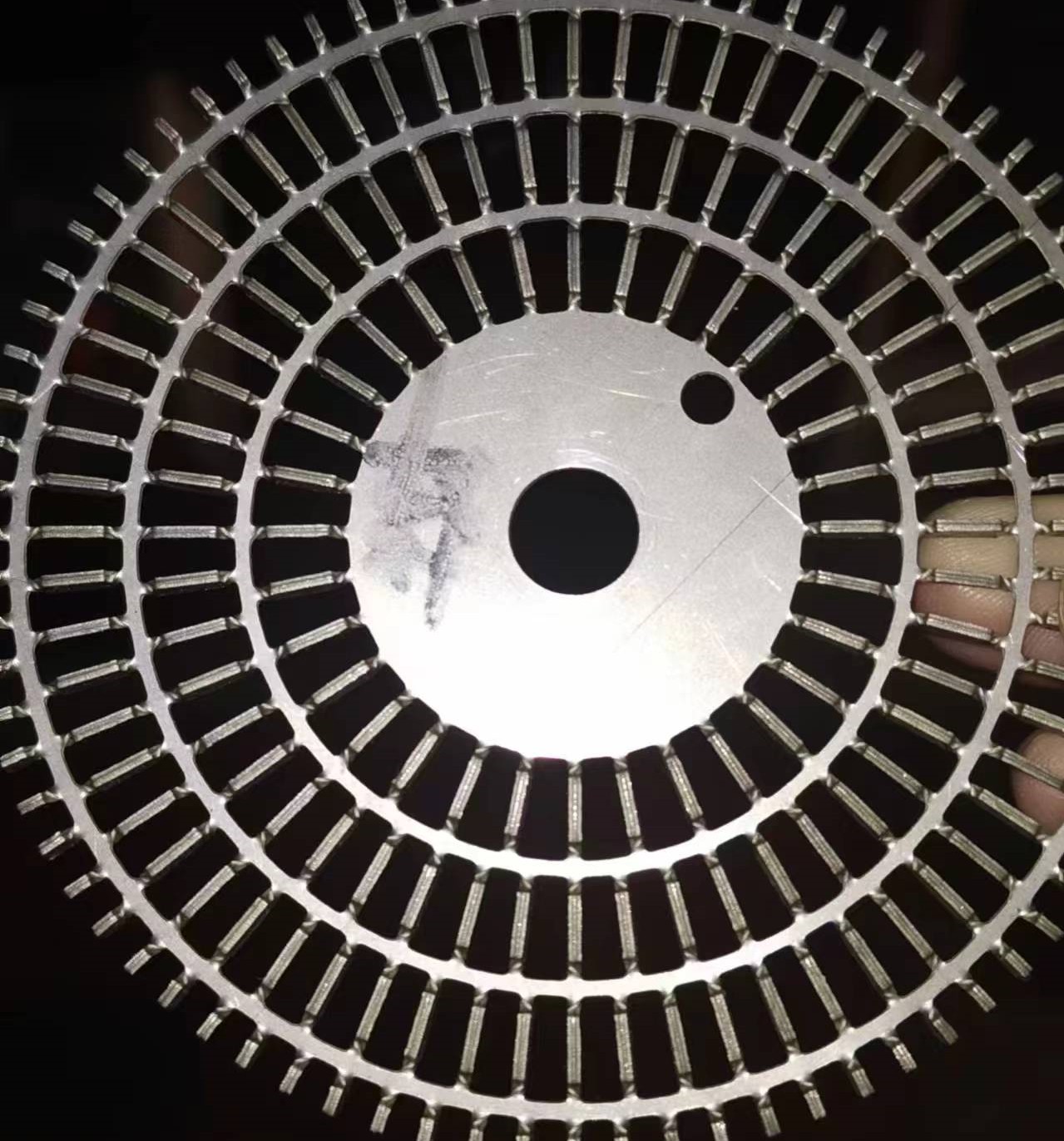

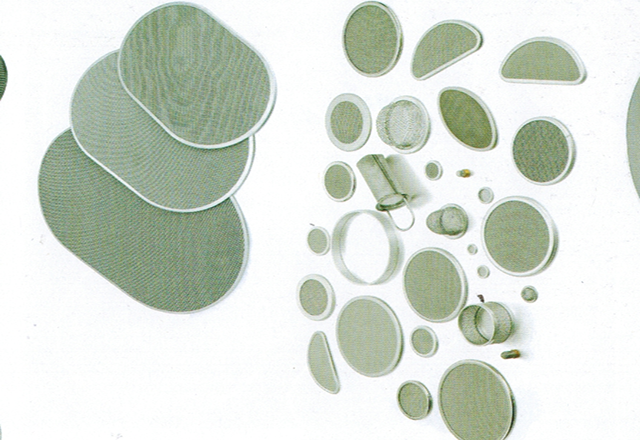

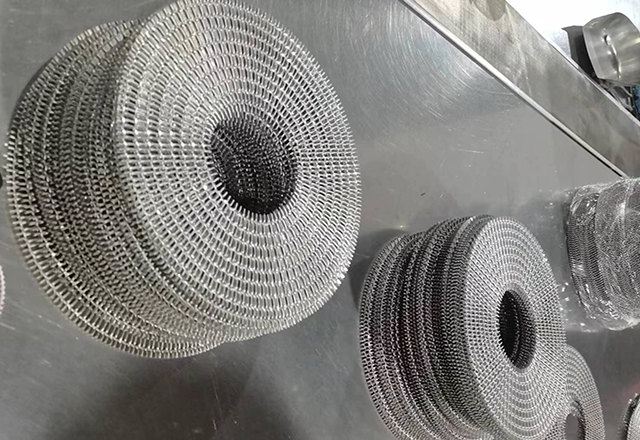

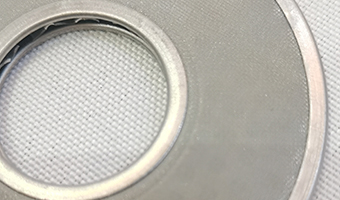

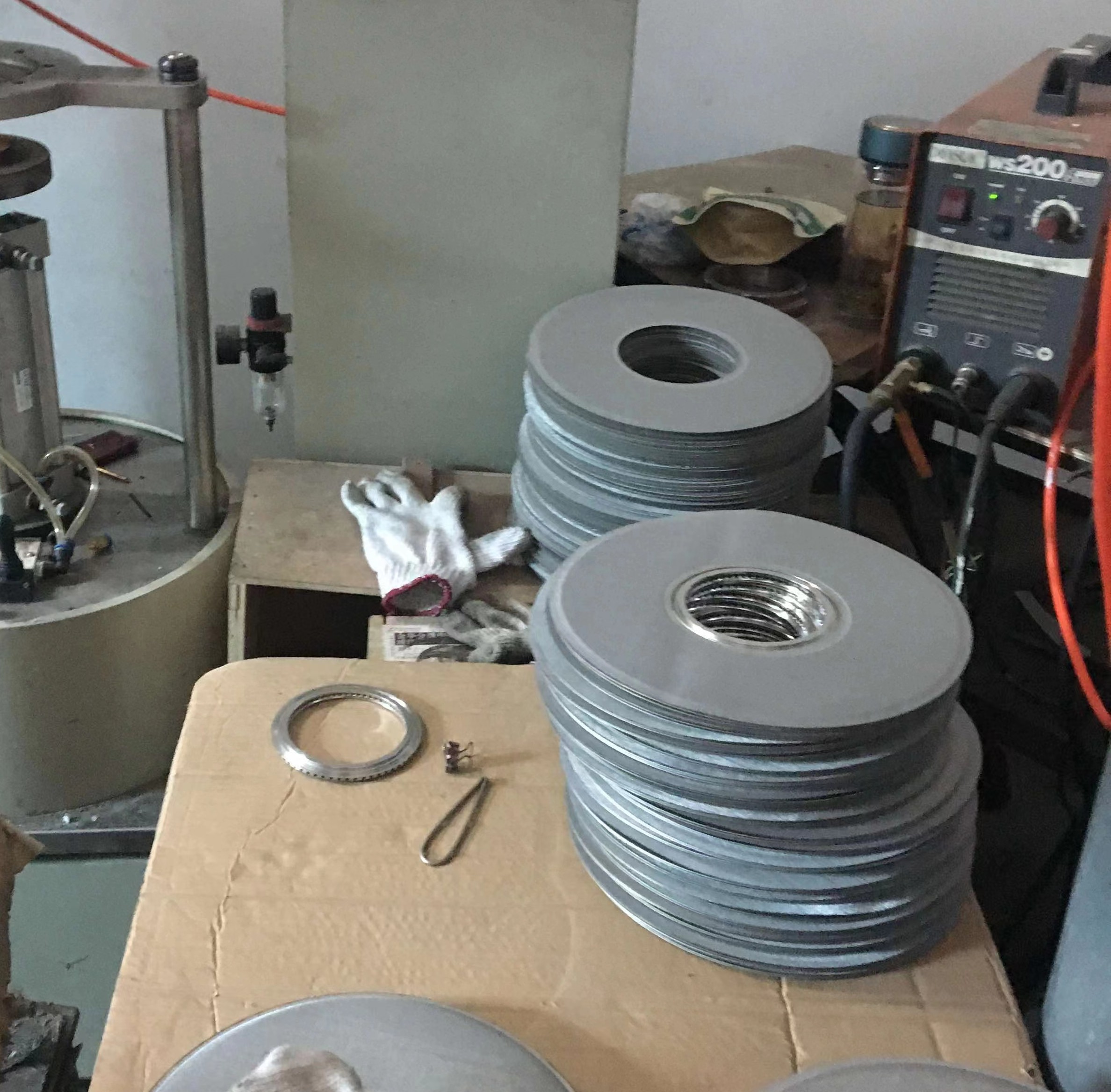

Product Photograph
