Replacement hydac hydac duplex filter from China Manufacturer

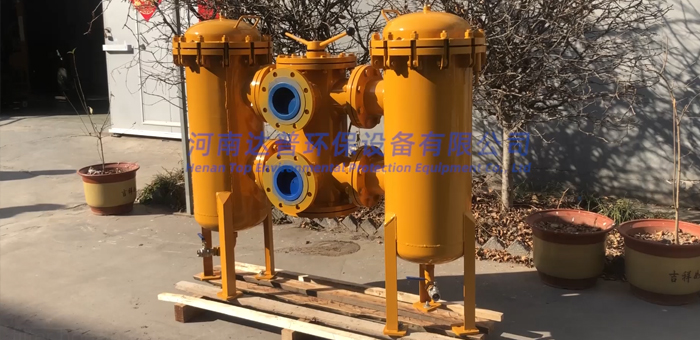

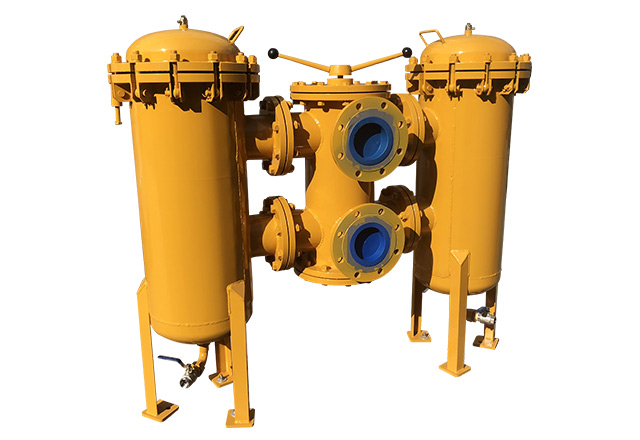

Duplex tank filter housing SLLF150x80YC

Application:

lubricating systems of heavy duty, mining and metallurgical machines.

Filtration accuracy:

80 micron

Filter surface:

3.3㎡

Product Description

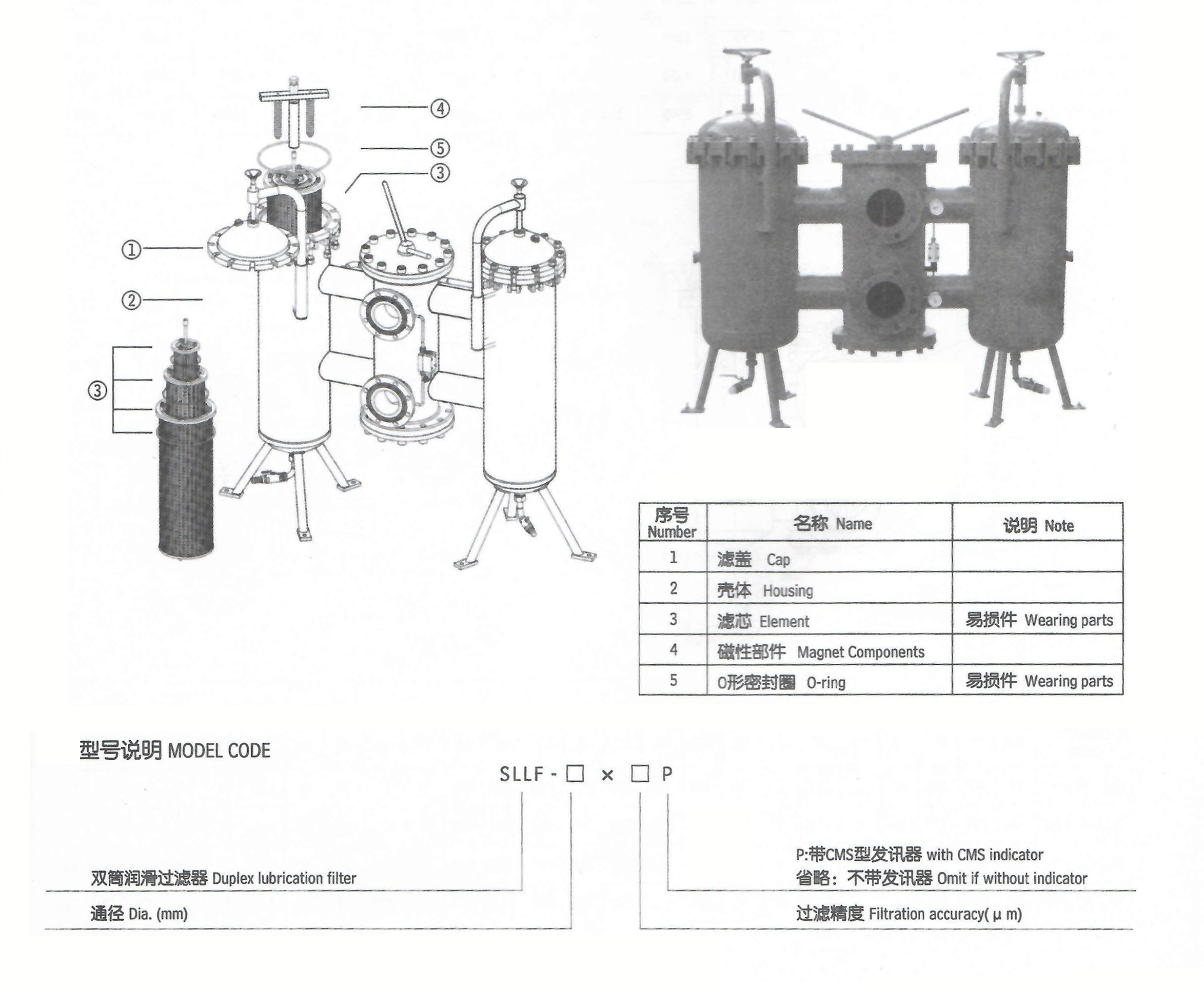

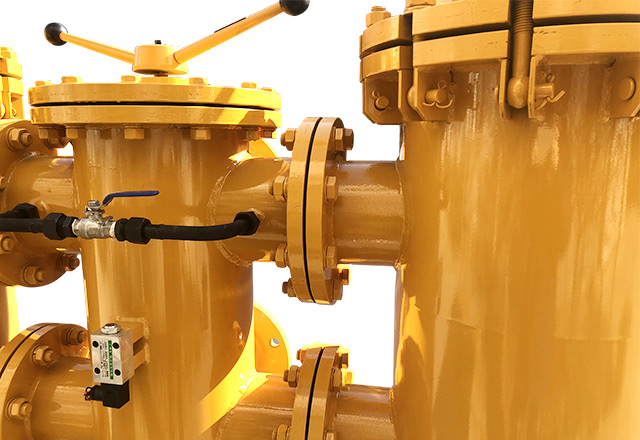

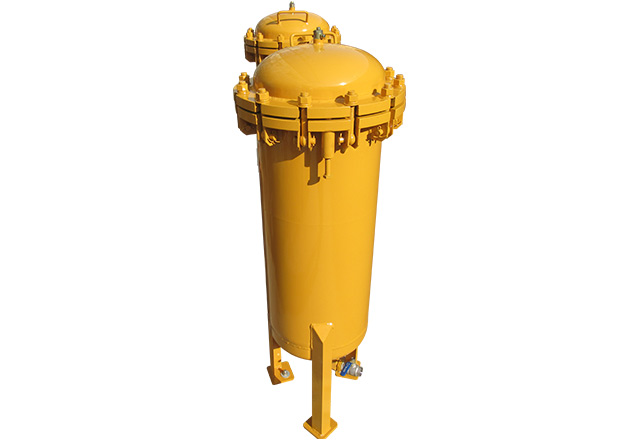

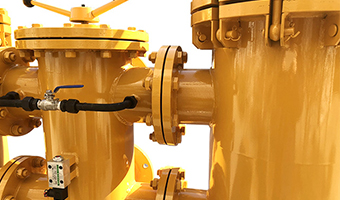

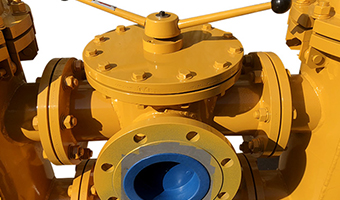

SLLF series filter is composed of two single bowl filters and one 2-position 6 way directional valve. It is simple in construction and easy to use. There is a by-pass valve and two contamination indicators in it, for protecting the lubricating system safety. The feature of this filter allows continuous operation even if the clogged element needs replacing for a clean one. After opening the balance valve and then turning the directional valve, the other filter will begin to work in the lubricating system;the clogged element should be changed at that time. This series filter is used in lubricating systems of heavy duty, mining and metallurgical machines.

Technical Parameters

Model	Dia.(mm)	Filter surface(㎡）	Class of kinematic viscosity
			N46		N68		N100		N150		N460
			Filtration accuracy(μm）
			80	120	80	120	80	120	80	120	80	120
			Flow(L/min)
SLLF-32×*P	32	0.08	130	310	120	212	63	151	29	69	19	49
SLLF-40×*P	40	0.21	330	790	305	540	160	384	72	175	48	125
SLLF-50×*P	50	0.31	485	1160	447	793	250	565	107	256	69	160
SLLF-65×*P	65	0.52	820	1960	760	1340	400	955	180	434	106	250
152SLLF-80×*P	80	0.83	1320	3100	1200	2150	630	1533	288	695	170	400
SLLF-100×*P	100	1.31	1990	4750	1840	3230	1000	2310	436	1050	267	630
SLLF-150×*P	150	3.3	5000	12000	4650	8130	2520	5840	1094	2660	679	1600
SLLF-200×*P	200	6.00	9264	22140	8568	15114	4620	10788	2034	4908	1254	2898
