Home > Products > Replacement filter > M-Pee Filter
replacement MP filter
glass fiber filter
OIL FILTER
MF1001
replacement MP filter
glass fiber filter
OIL FILTER
MF1001

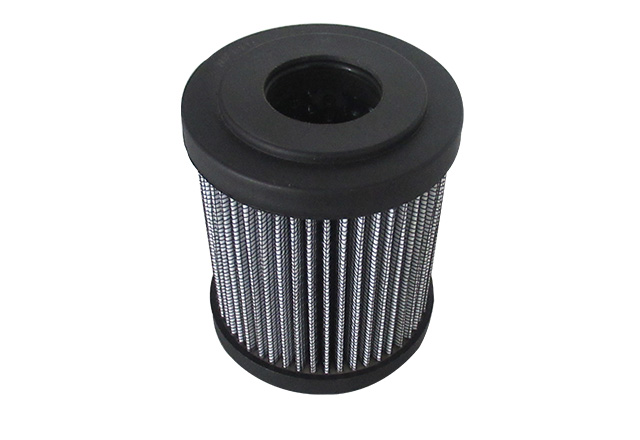

MPee FILTER MF1001

Filtration accuracy:
1 ~ 100μm
Working pressure (MAX):
21bar-210bar
Working medium:
general hydraulic, phosphoric acid hydraulic oil, emulsion, water - glycol
Send Email
Chat Now
Share:
Product Description
Technical Parameters
Advantages
Show Details
Application field
Product Description
MF1001 is made of high quality glass fiber, oil filter paper, stainless steel, sinter felt filter material and other materials.Filter precision: from 1, 3, 6, 12, 25......
Microns.Pressure: 1.0Mpa, 2.0Mpa, 16.0Mpa, mainly used in hydraulic and lubrication systems, used to filter out the solid particles and colliform substances in the working medium and other pollutants, effectively control the pollution degree of the working medium, to ensure the normal operation of the system.
Technical Parameters
Filtration accuracy: 1 ~ 100μm
Working pressure (MAX) : 21bar-210bar
Working medium: general hydraulic, phosphoric acid hydraulic oil, emulsion, water - glycol
Operating temperature: -30℃ ~ +110℃
Medium: general hydraulic oil phosphoric acid hydraulic oil emulsion water - hexadiol
Sealing material: fluorine rubber ring butaniline gum.
Material quality: glass fiber filter paper -BN stainless steel woven mesh -W wood pulp filter paper -P stainless steel sintered mesh -V filtration accuracy: 1μ ~ 100
Advantages
01
Good filtration performance, 2-200um filter particle size can play a uniform surface filtration performance
02
Good corrosion resistance, heat resistance, pressure resistance and wear resistance
03
Flter hole uniform, accurate filtration accuracy
04
Filter is suitable for all kinds of hydraulic environment



MODEL:
MR2504A10A HP1352D16AN 8HP1352D16RN CS-150-P25-A MR2504A10A SF250M25 FRTE100P10S10
MF1001A025HBP01 MPF4001VG1 MF4001A25HV MF4002A25HB MF1001A025HBP01 MF4003P25HB HP1351A10AH
Show Details
Application field

Metallurgy
used for rolling mill, continuous casting machine hydraulic system filtration and filtration of various lubrication equipment.
Petrochemical
oil refining, chemical production process of products and intermediate products separation and recovery, liquid purification, tape, CD and photographic film in the manufacturing of purification, oil field injection well water and natural gas in addition to particle filtration.
Textile
polyester melt in the process of drawing purification and uniform filtration, air compressor protection filtration, oil and water removal of compressed gas.
Electronics and pharmaceutical
reverse osmosis water, deionized water pretreatment filtration, cleaning solution and glucose pretreatment filtration.
Thermal power and nuclear power
gas turbine, boiler lubrication system, speed control system, bypass control system oil purification, water pump, fan and dust removal system purification.
Mechanical processing equipment
papermaking machinery, mining machinery, injection molding machine and large precision machinery lubrication system and compressed air purification, the first processing equipment and spraying equipment dust recovery and filtration.
Railway internal combustion engine and generator
lubricating oil and oil filtration.
