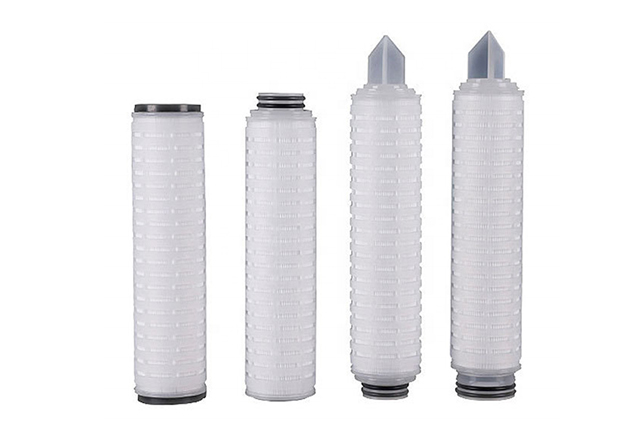

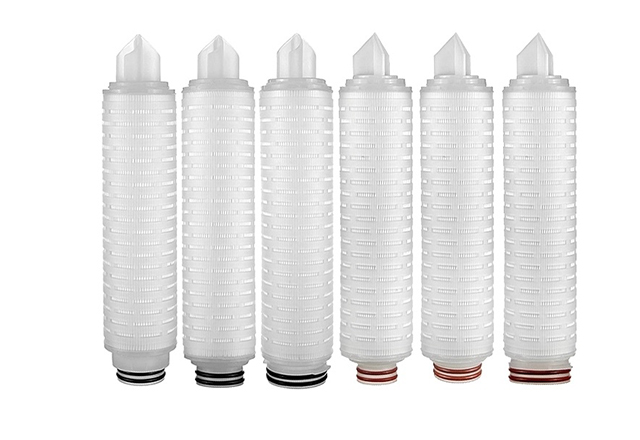

Replace pal pp/ptef membrane filter ab1pfr7pvh4

Filter material:
PP, PES, PTFE, nylon, etc;
Filtration accuracy:
0.1um, 0.22um, 0.45um, 1um, 3um, 5um, 10um, 20um, 30um, 50um;
Filter element length:
5”, 10”, 20”, 30”, 40”
Share:
Product Description

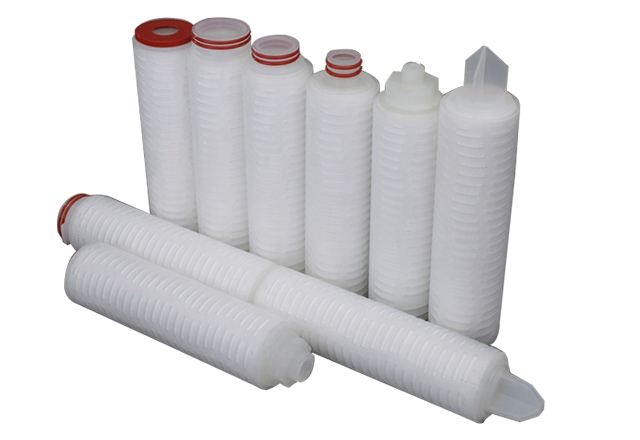

Microporous folding filter adopts polypropylene fiber membrane (PP), nylon film (NL), polysulfone (PS),polytetrafluoroethylene (PTEF) ,polyvinylidene fluoride (PVDF), and non-woven (screen) support layers folded, the filter shell,central core and end caps using hot melt welding technology processing molding,without any glue, no leakage,no secondary pollution. Through the micron screen filtering of the membrane surface to achieve a certain role in particle filtration.

Technical Parameters
Filter material PP, PES, PTFE, nylon, etc
Filtration accuracy 0.1um, 0.22um, 0.45um, 1um, 3um, 5um, 10um, 20um, 30um, 50um
Filter element length 5”, 10”, 20”, 30”, 40”
Filter element outer diameter 69mm
Inner diameter of filter element: 29mm
PH value 1-13

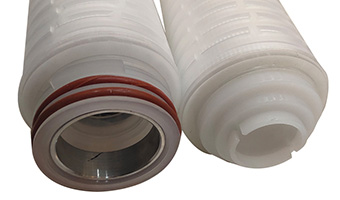

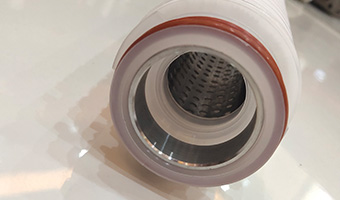

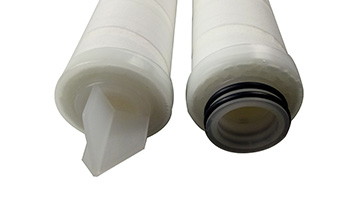

Main connection methods Flat, bayonet, socket, 222, 226, 215
Maximum working temperature 0.1MPa (≤80℃)
Maximum working pressure 0.3MPa at 50℃
Maximum back pressure difference 0.2MPa at 25℃
Maximum disinfection temperature 120℃


Advantages
01
Excellent chemical compatibility,suitable for filtering strong acid,alkali and organic solvents
02
Deep folding filtration,large membrane filtration area
03
Low pressure differ,large pollution capacity, long service life
04
Gradual pore size changes provide ultra-high capacity



Hydrophobic PTFE Membrane Filter
·Naturally hydrophobic PTFE membrane with excellent porosity, high flow rate·Absolute rating, filtration efficiency≥99. 99%, Up to 0.01 micron in gas sterile filtration
· Low pressure drop and long service life
· Wide chemical compatibility, resistant to strong alkali, acids, aggressive gases and solvents
· High temperature endurance performance
· 100% integrity tested before final assembly
