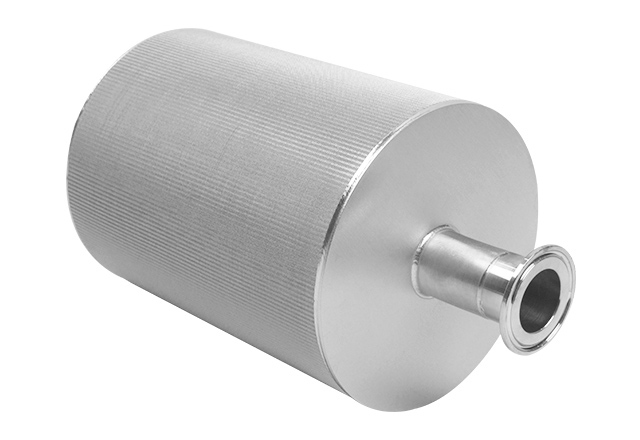

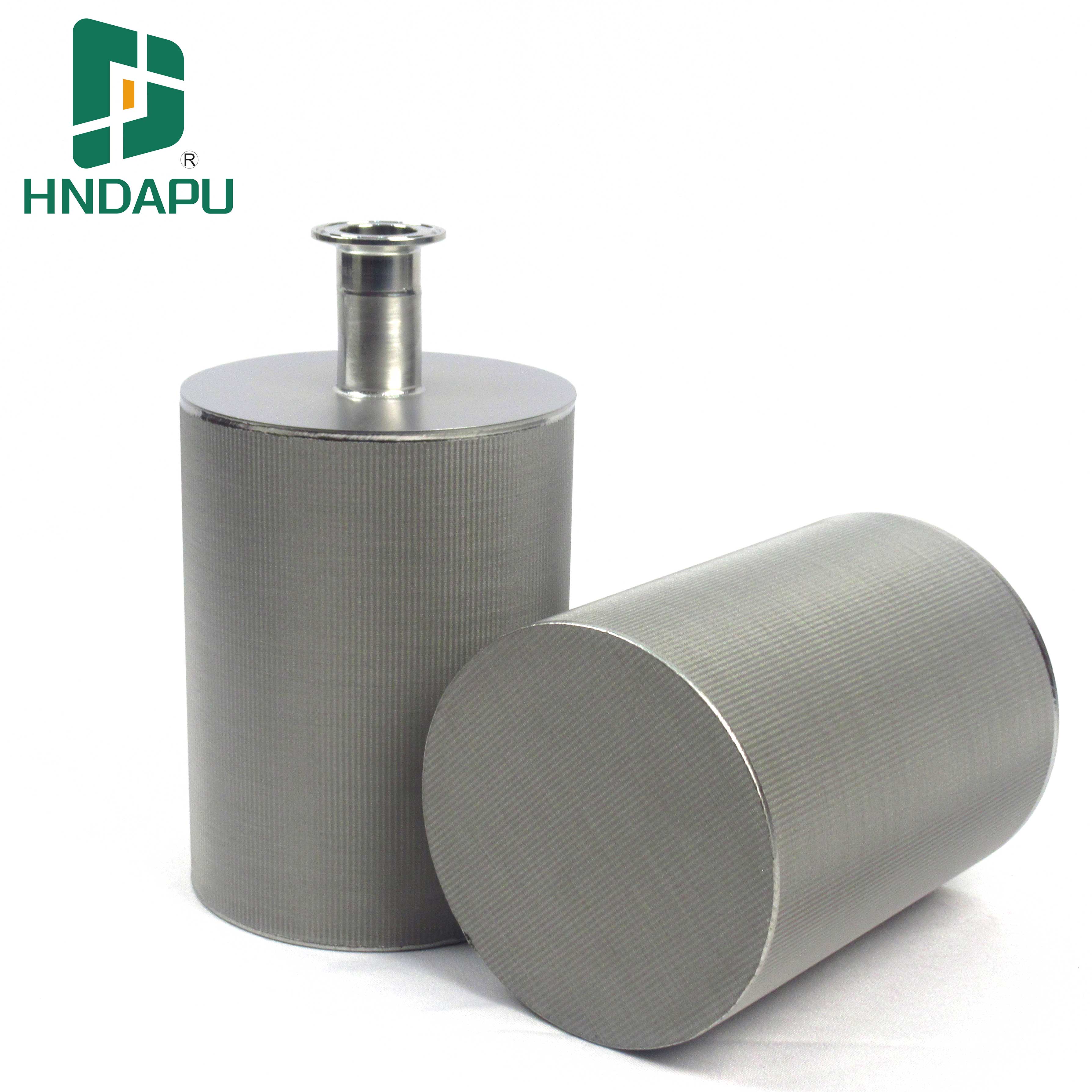

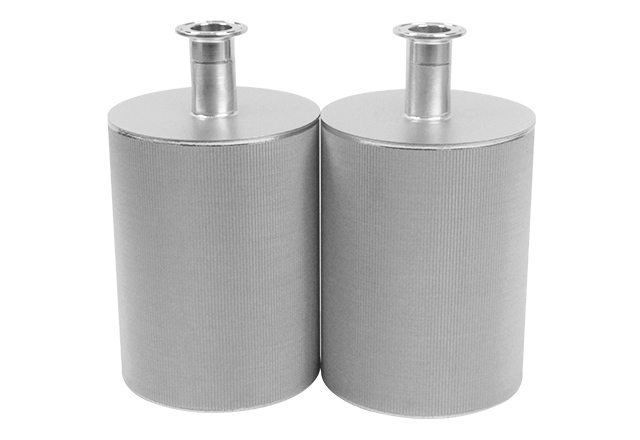

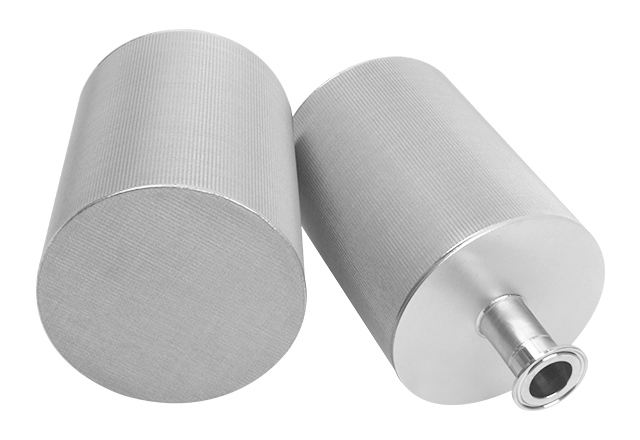

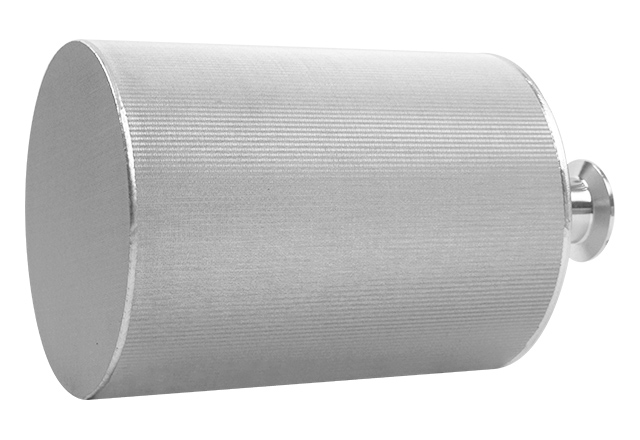

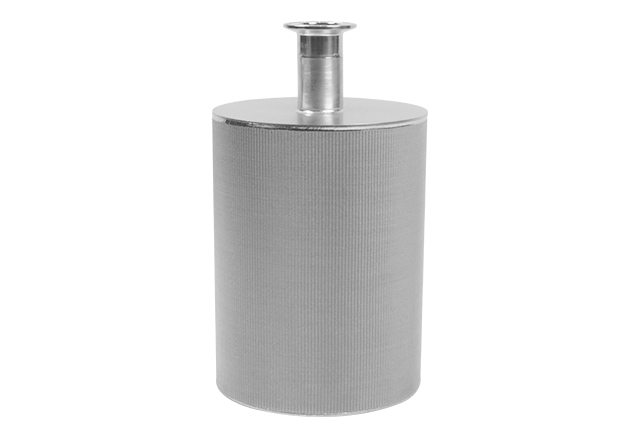

Customized Sintering Filter 32*150*260

Interface
Quick Install
Share:
Product Description
The stainless steel sintered filter element is mainly made of stainless steel fiber sintered mat and stainless steel braided net processed by folding process.
The stainless steel fiber sintered mat can be made into a multilayer structure with coarse to fine pore diameter, which has the characteristics of high porosity and high pollution carrying capacity.Stainless steel woven mesh is made of stainless steel wire of different diameters, made of filter element has good strength, not easy to fall off, easy to clean, high temperature resistance, economic use and so on.

Features

High strength: five layers of wire mesh sintering, with very high mechanical strength and compressive strength;
High precision: the filter size of 1-300um can play a uniform surface filtration performance;
Heat resistance: can be durable from -200 degrees to 650 degrees of continuous filtration;
Cleaning: due to the use of excellent countercurrent cleaning effect of the surface filter structure, simple cleaning.
Material SUS 304/316/316L
Working medium water,air,oil and other liquid
Diameter range 2.0-450mm
High rage  1.0-100mm
Working temperature -200-650℃
Filter precision 1-300 micron



Advantages
01
High quality 304/316 stalinless steel filter material
02
Good corrosion resistance, heat resistance, pressure resistance
03
Good permeability,washable and reusable
04
High strength,no additional support required



Connector Type
Main connection modes are standard interface (such as 222. 220 and 226) ,fast interface connection,thread,flange and pushing rod connection,special custom interface.
