High Flow Water Filter 152*620

Share:
Product Description

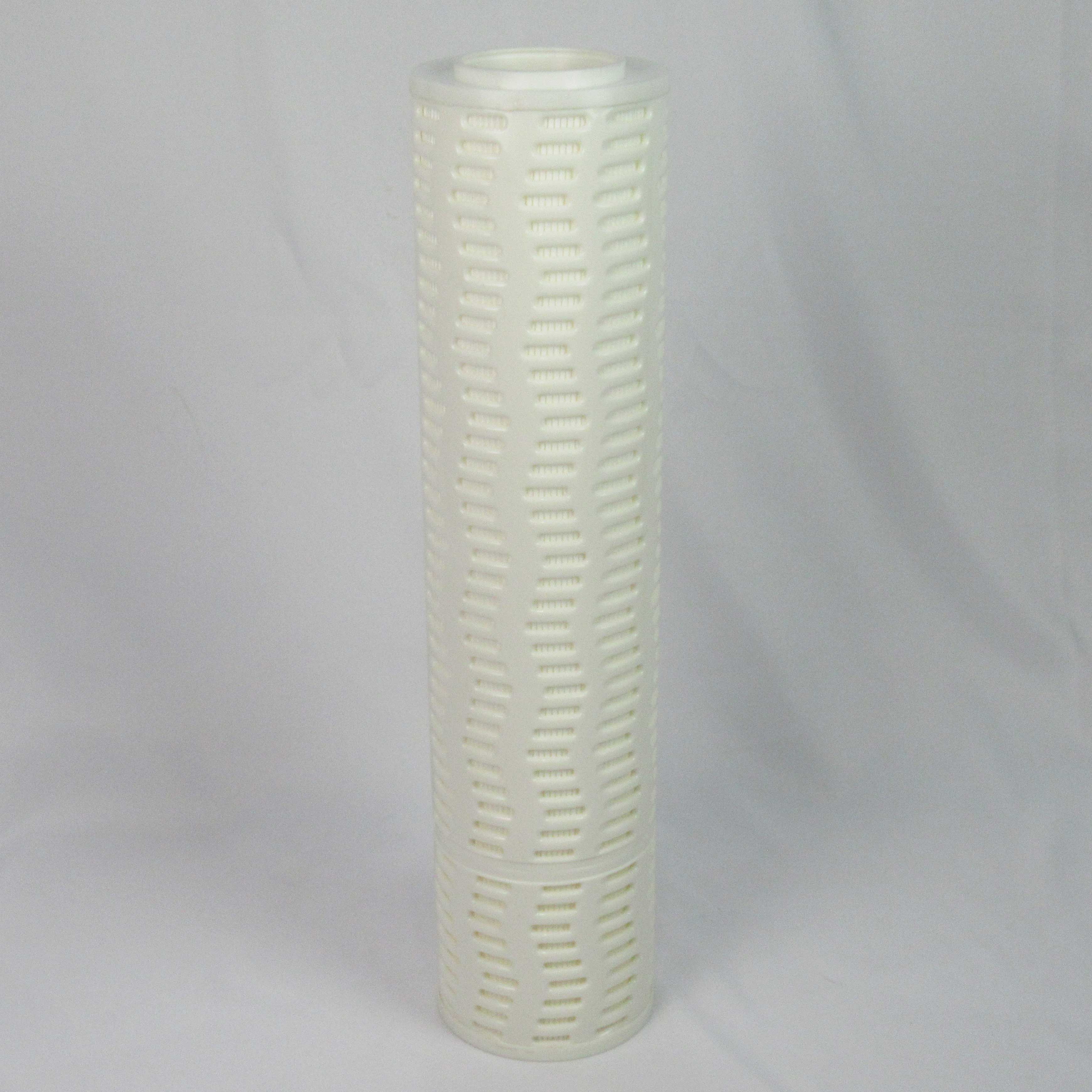

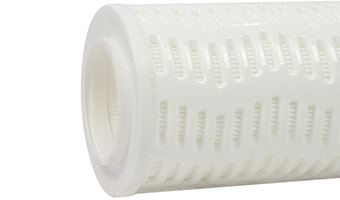

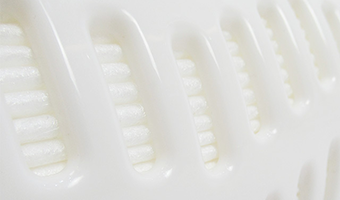

The High Flow filter is suited for applications such as cooling water, pre-RO, and resin trap filtration. It is a large diameter, coreless, single open-ended, pleated cartridge with an inside to outside flow pattern. The filter's unique crescent-shaped pleat geometry, combined with its large 152 mm / 6 in diameter, reduces the number of filters and size of housing required. The cartridge is also available in a wide range of  media types for other applications.
Technical Parameters
Product name High flow water filter
Size Customized
Filtration accuracy 1 μm, 4.5 μm, 6μm, 10μm, 20μm, 40μm, 70μm, 100μm is optional
Filtration media Stainless Steel Msh, Glass Fiber, PP, MBPP
End caps Glass fiber reinforced polypropylene, Plastic
Inner frame Plastic, Stainless Steel
Outer frame Polypropylene(PP), Stainless Steel

Advantages
01
Large filter flow, less the change times, cost saving.
02
Flow from inside to outside ensures all impurities are trapped inside the filter element
03
The design of the sealed reduces the risk of bypass flow and improves filtration efficiency.
04
Widely used in a variety if areas.



Part Nos.

PALL High flow filters typical Part Nos.

HFU620UY060H13,HFU620UY060J,HFU620UY100H13,HFU620UY100J
HFU620UY200H13,HFU620UY400H13,HFU620UY400J,HFU620UY400JU
HFU640GF020H,HFU640GF020H13,HFU640GF020J,HFU640GF100H1
HFU640GF100H13,HFU640GF200H13,HFU640UY020J,HFU640UY045J
HFU640UY1000J,HFU640UY1000J,HFU640UY1000JU,HFU640UY100H13,HFU640UY100H4
HFU640UY100J,HFU640UY200H13,HFU640UY200J,HFU640UY200J,HFU640UY400J
HFU640UY400J,HFU640UY700J,HFU660GF020J,HFU660GF100H1,HFU660UY020J
HFU660UY045H13,HFU660UY045H4,HFU660UY045J,HFU660UY060H13,HFU660UY060J
HFU660UY1000J,HFU660UY100J,HFU660UY200H13,HFU660UY200J,HFU660UY400J
HF620UY20J,HF640UY20J,HF660UY20J,HF620UY45J,HF640UY45J,HF660UY45J
HF640UY100J,HF660UY100J,HF620UY200J,HF640UY200J,HF660UY200J,HF620UY400J
HF640UY400J,HF660UY400J,HF620UY700J,HF640UY700J,HF660UY700J, HF620UY100J
