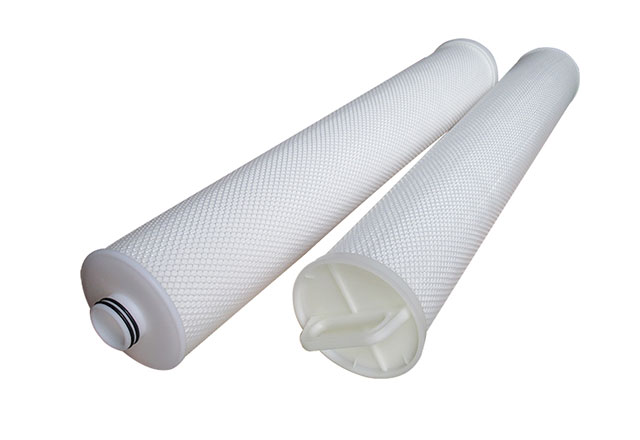

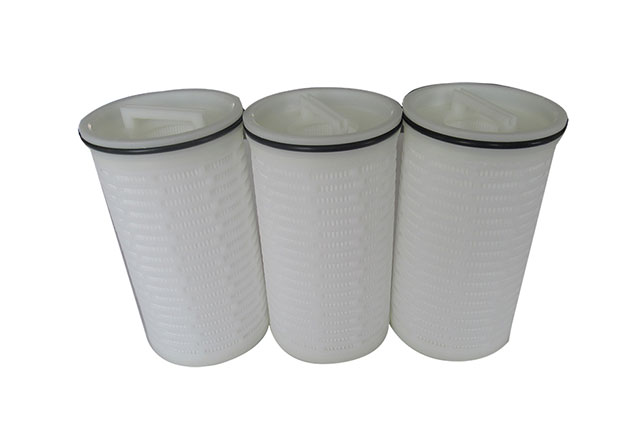

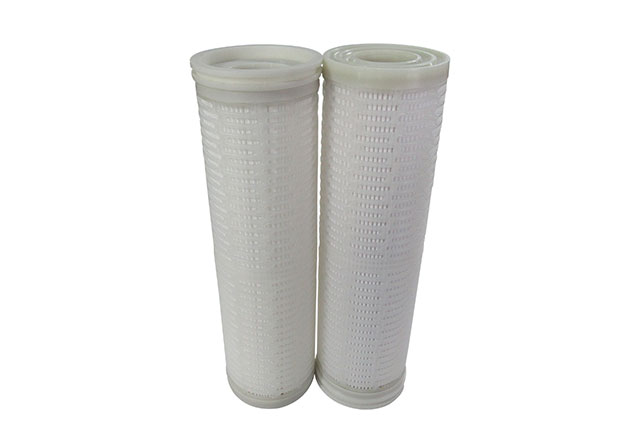

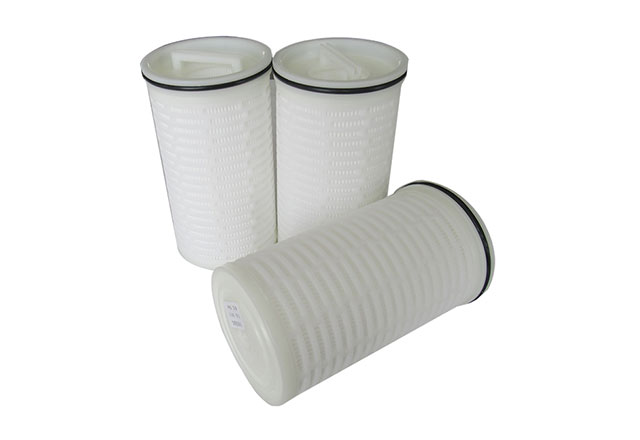

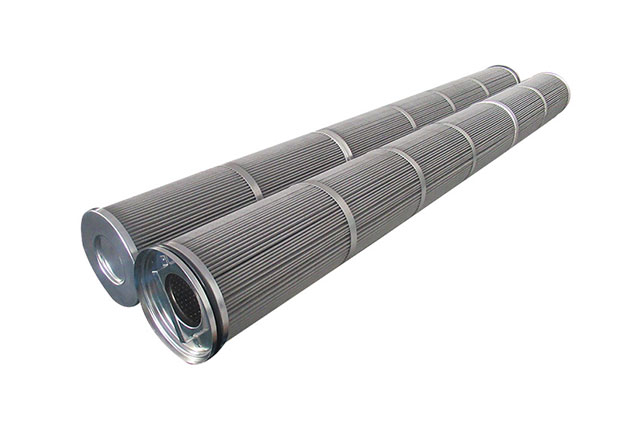

High Flow Water Filter
High Flow Water Filter
High Flow Water Filter
High Flow Water Filter
High Flow Water Filter
High Flow Water Filter
High Flow Water Filter
High Flow Water Filter
High Flow Water Filter
High Flow Water Filter
High Flow Water Filter
High Flow Water Filter
High Flow Water Filter
High Flow Water Filter

High Flow Water Filter

Length:
20inch,40 inch,60 inch
Filtration accuracy:
1 μm,4.5 μm,6μm,10μm,20μm,40μm,70μm,100μm
Filtration media:
pleated fiberglass, pleated deep polypropylene, pp melt blown polypropylene
Share:
Product Description

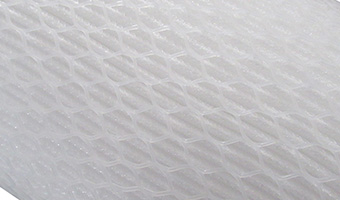

High flow water filter adopts polypropylene fiber, polyester fiber, glass fiber material etc, as the filter material then fold and mold with supporting mesh.
Single end open, the liquid flow from inside to outside, make all impurities trapped inside the filter element. The large diameter design of increases the filtration area of the filter, there by improving filtration efficiency, extending service life and reducing costs.
Technical Parameters

Size OD: 6inch
Length: 20inch, 40 inch, 60 inch
Filtration accuracy 1 μm, 4.5 μm, 6μm, 10μm, 20μm, 40μm, 70μm, 100μm
Filtration media pleated fiberglass, pleated deep polypropylene, pp melt blown polypropylene

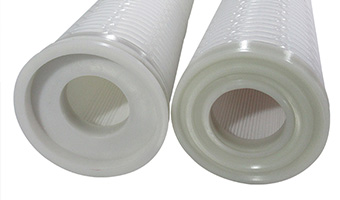

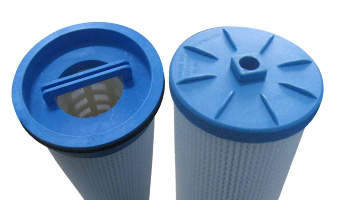

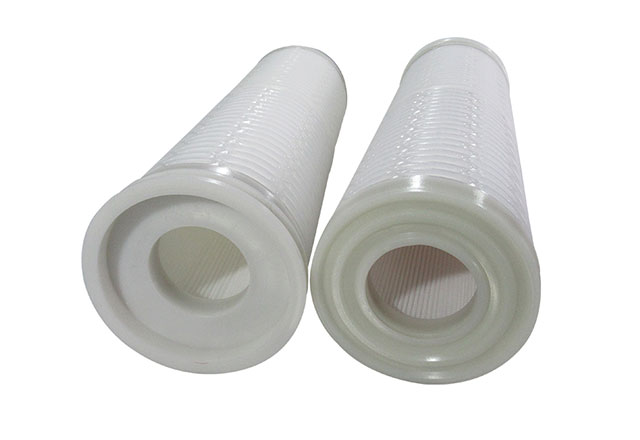

Support/end caps polypropylene
Gasket material EPR, NBR, Silicone rubber
Max pressure drop Pleated glass fiber: 3.4 bar, 121 ℃
Pleated deep PP: 3.4 bar, 82 ℃
Melt blown PP: 1.03bar, 65 ℃
Filter change pressure drop 2.4bar, 20℃
Max.water flow rate 20'': 660LPM
40'': 1300LPM
60'': 1900LPM
Advantages
01
Large filter flow, less the change times, cost saving.
02
Flow from inside to outside ensures all impurities are trapped inside the filter element
03
The design of the sealed reduces the risk of bypass flow and improves filtration efficiency.
04
Widely used in a variety if areas.
