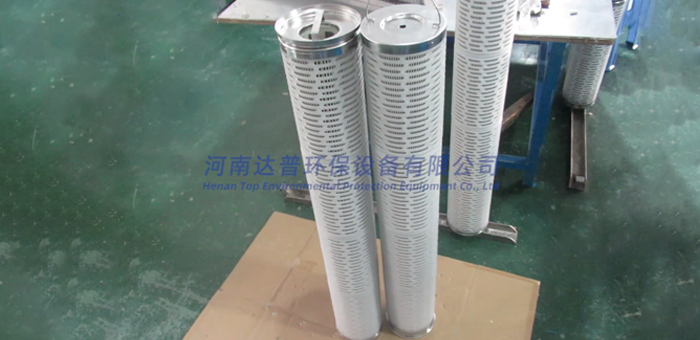

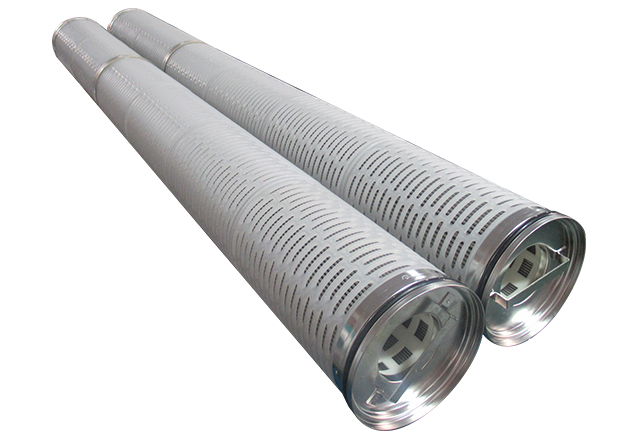

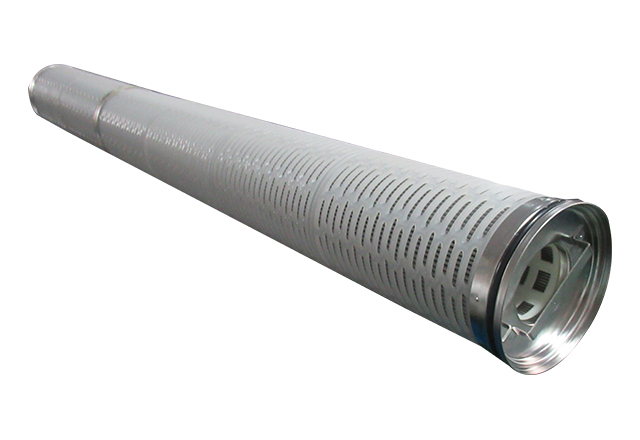

159x1030mm Stainless steel mesh high flow water filter

Size:
159x1030mm
Filtration accuracy:
1 μm,4.5 μm,6μm,10μm,20μm,40μm,70μm,100μm
Filtration media:
stainless steel mesh
Share:
Product Description
High flow water filter adopts polypropylene fiber, polyester fiber, glass fiber material etc, as the filter material then fold and mold with supporting mesh.
Single end open, the liquid flow from inside to outside, make all impurities trapped inside the filter element. The large diameter design of increases the filtration area of the filter, there by improving filtration efficiency, extending service life and reducing costs.
Technical Parameters

Product name High flow water filter
Size 159x1030mm(Customized)
Filtration accuracy 1 μm, 4.5 μm, 6μm, 10μm, 20μm, 40μm, 70μm, 100μm is optional
Filtration media Stainless steel mesh

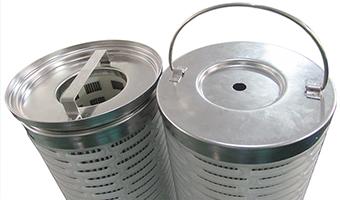

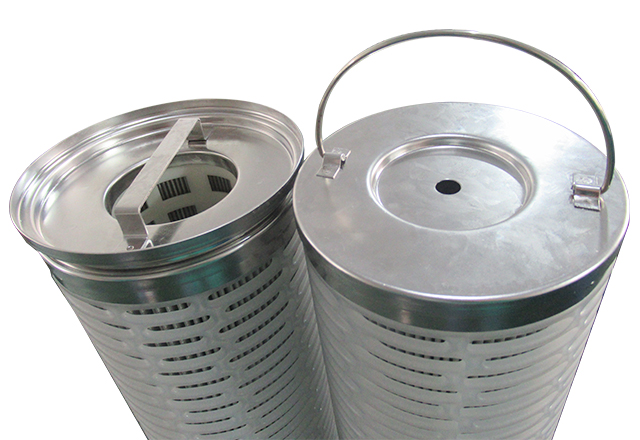

End caps SS304

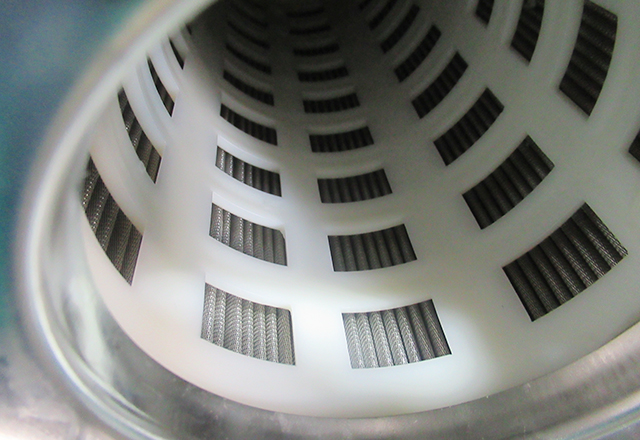

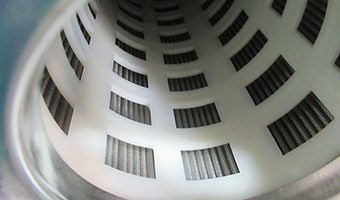

Inner frame Plastic
Outer frame Polypropylene(PP)
Gasket material NBR
Advantages
01
Large filter flow, less the change times, cost saving.
02
Flow from inside to outside ensures all impurities are trapped inside the filter element
03
The design of the sealed reduces the risk of bypass flow and improves filtration efficiency.
04
Widely used in a variety if areas.
