PP Melt Blown Filter
1290mm pp ftilter cartridge
PP Melt Blown Filter
10micron pp filter
water filter element
PP Melt Blown Filter
1290mm pp ftilter cartridge
PP Melt Blown Filter
10micron pp filter
water filter element

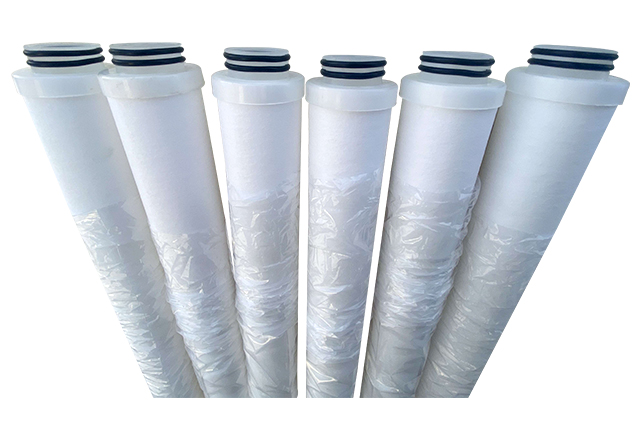

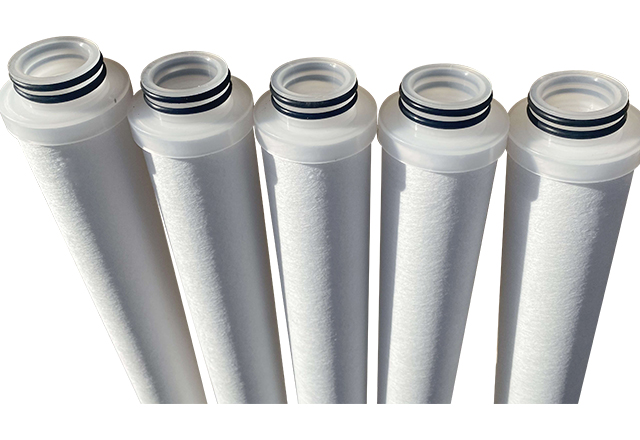

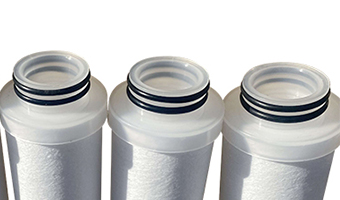

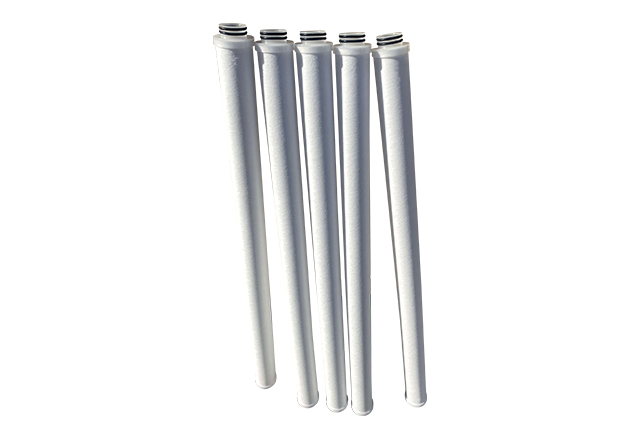

1290mm PP Melt Blown Filter

Size:
62*1290mm
Accuracy:
10 μm
Max temperature:
65℃~90℃
Share:
Product Description
The PP melt-blown filter element is made of polypropylene ultra-fine fibers by thermal fusion. The fibers are randomly self-bonded in space to form a three-dimensional microporous structure. The surface, the deep layer, and the coarse filter are integrated. Due to the high fiber density in the diameter direction of the filter element, high filtration accuracy and dirt holding capacity are formed, the pressure difference is small, and the deep filter structure with the outer density and the gradual pore size is strong. Can effectively remove suspended solids, particles, rust and other magazines in the fluid.

Technical Parameters

Size OD: 20-200mm,standard size:63mm,110mm
ID: 12-120mm,standard size:28mm,30mm
Length: 5inch, 10inch, 20inch, 30inch, 40inch, 50inch, 60inch.
Filtration rate 1μm, 3μm, 5μm,10 μ, 20 μm, 30 μm, 50μm, 75 μm, 100μm
Max temperature 65℃~90℃
Max pressure difference 21℃ 2.0bar
Advantages
01
Hot melt forming without any chemical adhesives
02
Strong surface fiber structure, not easy to lint free. Deep groove structure,scatter water flow direction,reduce water resistance.
03
Made of ultra-fine fibers, high filtration precision,strong stability
04
100% Pure Polypropylene,strong corrosion resistance
